Commercial
Insulated
Pin Terminals

Image	Part No	PDF		Length	Pin Diameter	Feed Thru Combination	Mounting	Board Thickness	Hole Size	Terminal Material	Terminal Finish	BASE/METAL SLEEVE FINISH	BASE/METAL SLEEVE MATERIAL	Insulation Material	Color	RoHS

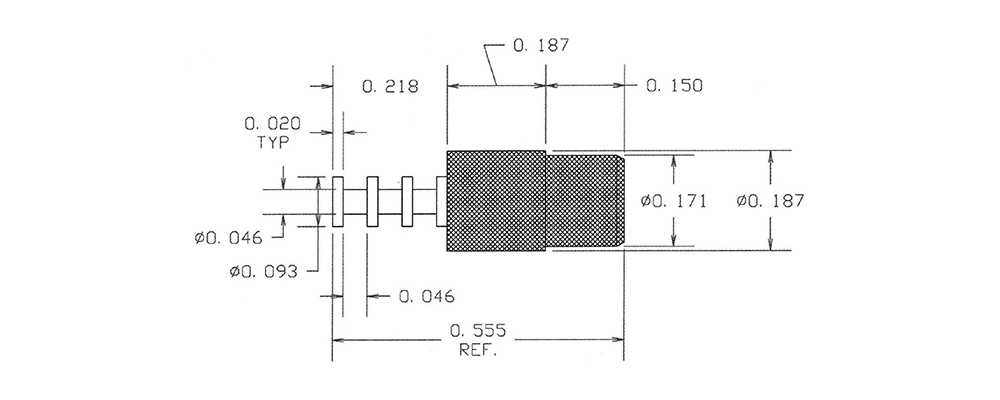

	1104-53-0113			0.555"	-	-	Press Fit	1/8	0.158	Brass	Silver	-	-	PTFE	Orange	NO

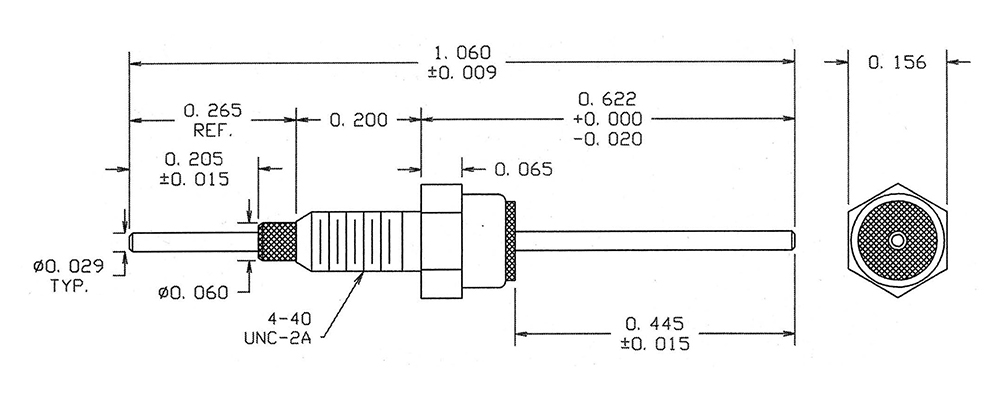

	1117-53-08816			1.060"	0.029	Pin/Pin	4-40 Nut	1/16	0.120	Brass	Bright Tin-Lead	Nickel	Brass	PTFE	Blue	NO

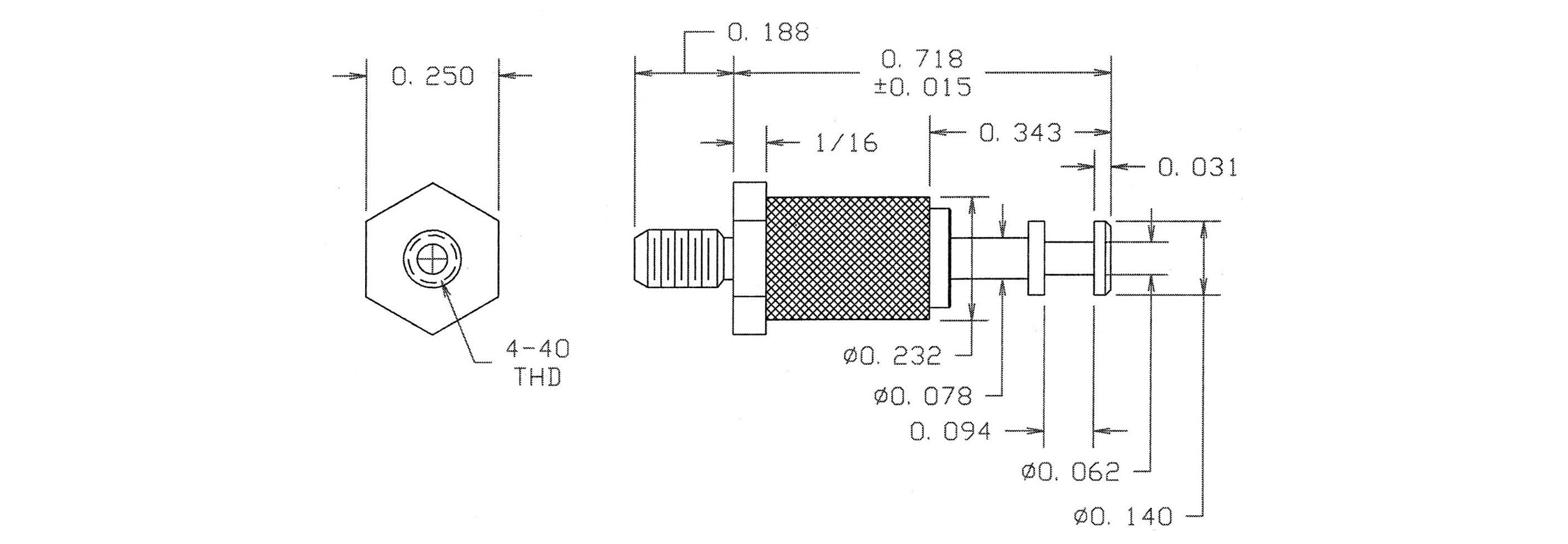

	1167-53-0413			0.906"	-	-	4-40 Nut	1/16	0.120	Brass	Electro-Tin	ZINC	Brass	DIALLYL PHTHALATE	Orange	YES
	1167-53-0119			0.906"	-	-	4-40 Nut	1/16	0.120	Brass	Silver	ZINC	Brass	DIALLYL PHTHALATE	White	YES
	1167-53-0419			0.906"	-	-	4-40 Nut	1/16	0.120	Brass	Electro-Tin	ZINC	Brass	DIALLYL PHTHALATE	White	YES

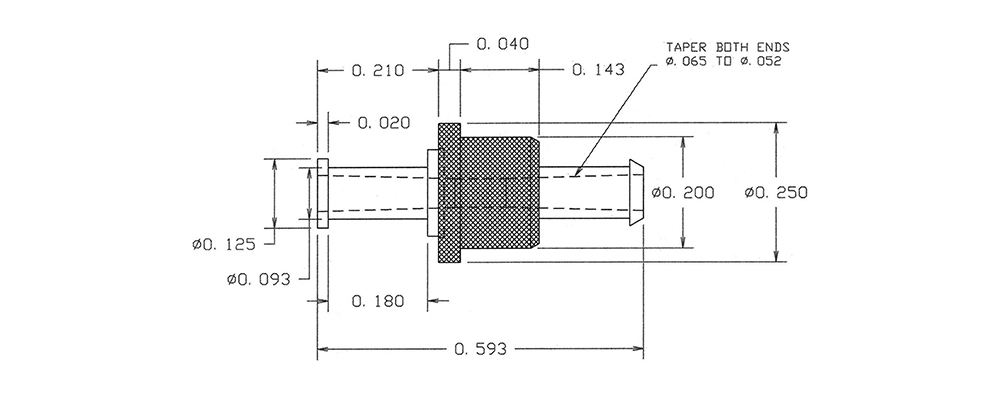

	1115-53-08819			0.593"	-	Turret/Turret	Press Fit	3/32	0.187	Brass	Bright Tin-Lead	-	-	PTFE	White	NO
	1167-53-0410			0.906"	-	-	4-40 Nut	1/16	0.120	Brass	Electro-Tin	ZINC	Brass	DIALLYL PHTHALATE	Black	YES

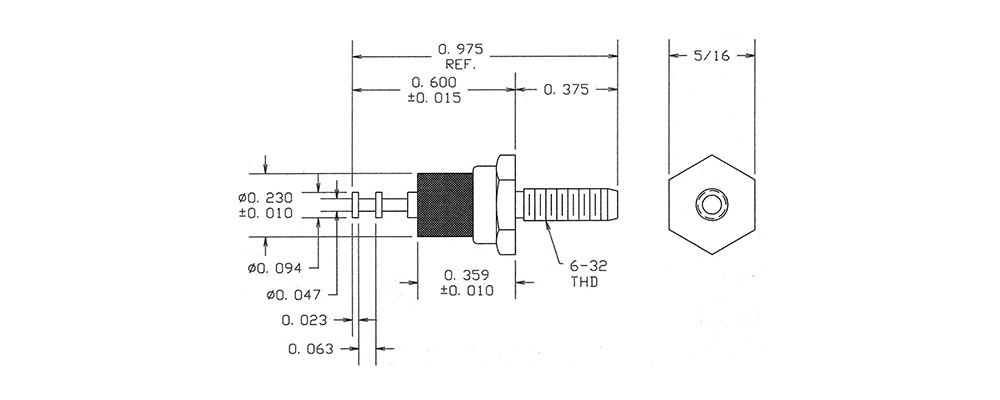

	1125-53-04414			0.975"	-	-	6-32 Nut	Up to 1/4	0.144	Brass	Bright Tin	Electro-Tin	Brass	PTFE	Yellow	NO
	1125-53-08814			0.975"	-	-	6-32 Nut	Up to 1/4	0.144	Brass	Bright Tin-Lead	Electro-Tin	Brass	PTFE	Yellow	NO

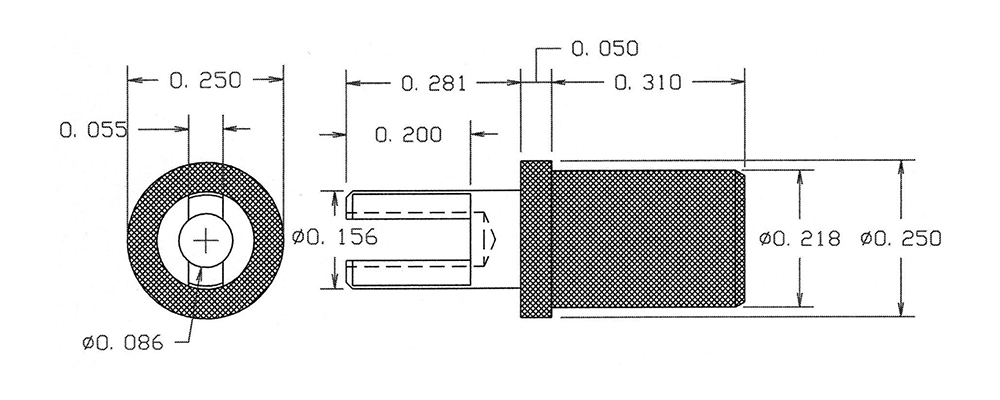

	1106-53-0315			0.641"	-	-	Press Fit	Up to 1/4	0.205	Brass	Gold	-	-	PTFE	Green	YES

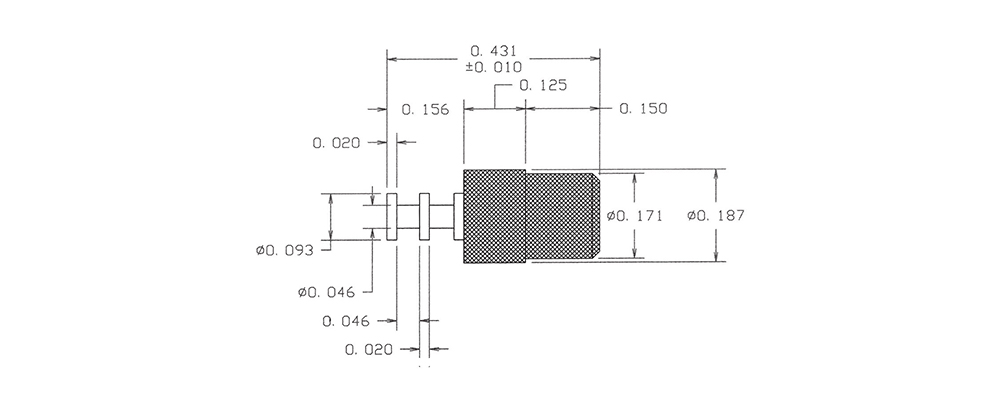

	1102-53-0416			0.431"	-	-	Press Fit	1/8	0.158	Brass	Electro-Tin	-	-	PTFE	Blue	YES
	1117-53-0316			1.060"	0.029	Pin/Pin	4-40 Nut	1/16	0.120	Brass	Gold	Nickel	Brass	PTFE	Blue	YES

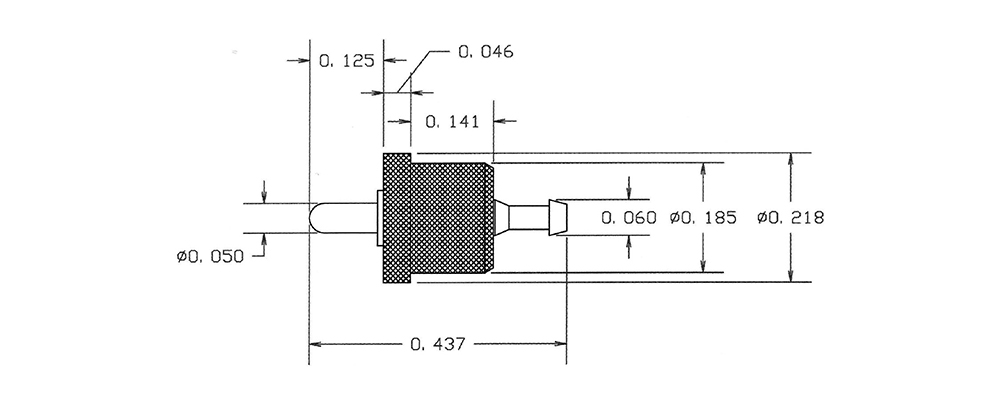

	1110-53-04413			0.437"	0.050	TURRET/PIN	Press Fit	3/32	0.172	Brass	Bright Tin	-	-	PTFE	Orange	NO
	1167-53-0517			0.906"	-	-	4-40 Nut	1/16	0.120	Brass	Electro Solder	ZINC	Brass	DIALLYL PHTHALATE	Violet	NO
	1167-53-0510			0.906"	-	-	4-40 Nut	1/16	0.120	Brass	Electro Solder	ZINC	Brass	DIALLYL PHTHALATE	Black	NO
	1110-53-0112			0.437"	0.050	TURRET/PIN	Press Fit	3/32	0.172	Brass	Silver	-	-	PTFE	Red	NO

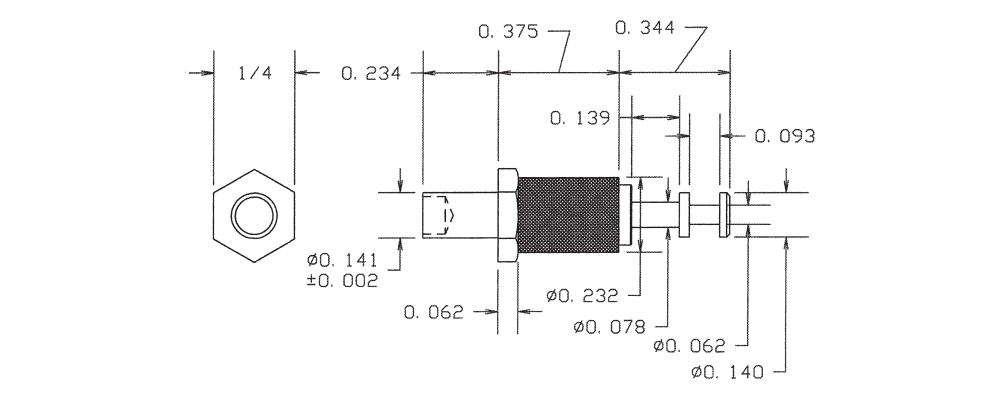

	1127-53-04411			0.953"	-	-	Swage Mount	3/16	0.147	Brass	Bright Tin	ZINC	Brass	DIALLYL PHTHALATE	Brown	YES

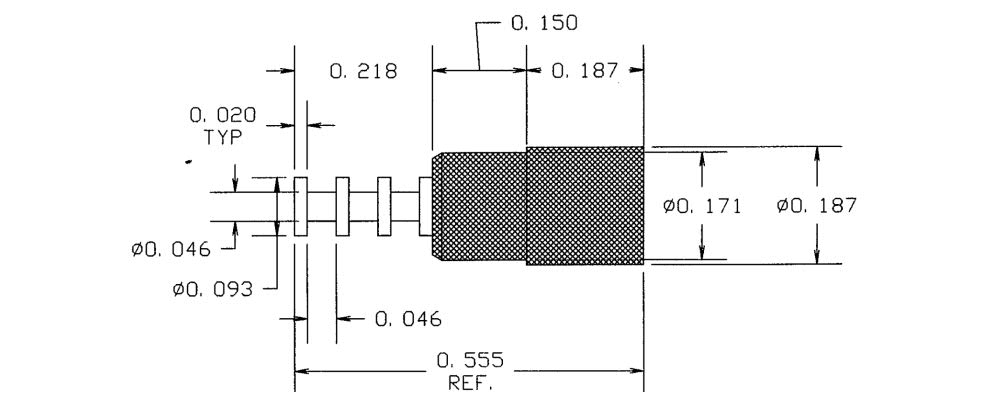

	1104R-53-04415			0.555"	-	-	Press Fit	1/8	0.158	Brass	Bright Tin	-	-	PTFE	Green	YES

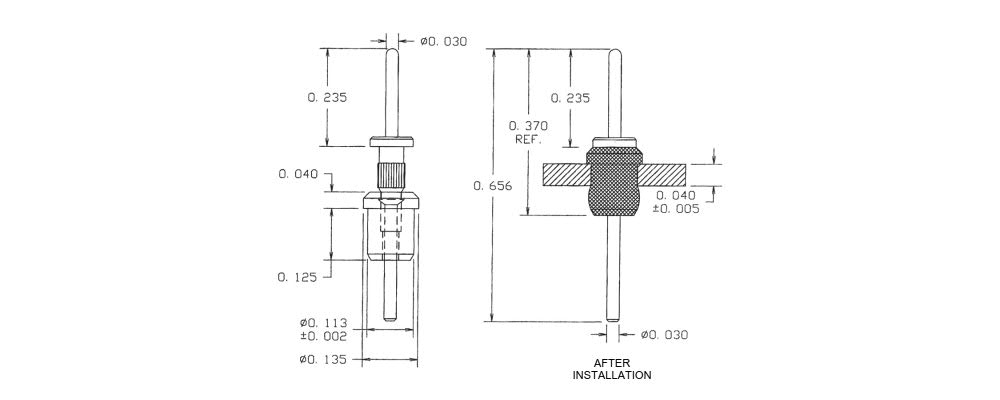

	1177-53-0411			0.656"	0.030	Pin/Pin	PRESS LOCK	1/32 - 1/16	0.115	Brass	Electro-Tin	-	-	PTFE	Brown	NO
	1127-53-04415			0.953"	-	-	Swage Mount	3/16	0.147	Brass	Bright Tin	ZINC	Brass	DIALLYL PHTHALATE	Green	YES
