Non-Insulated
PC Jacks

Filter

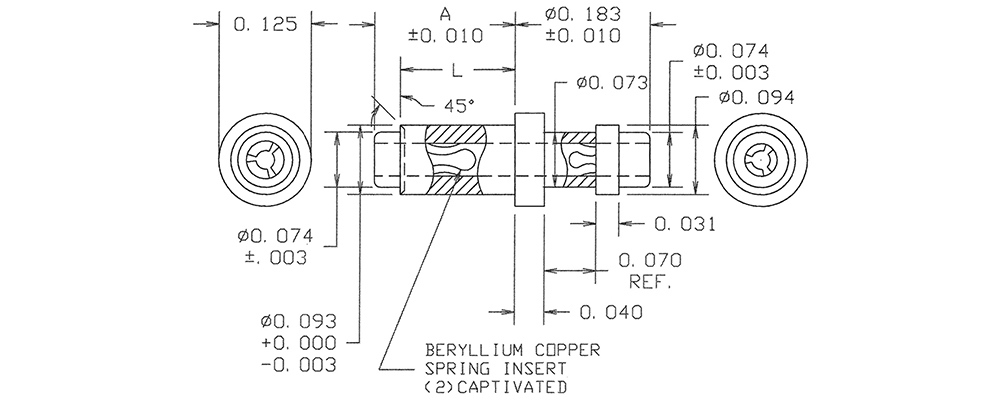

09-9022-6-03
09-9022-6-03
09-9022-6-03
0.025 0.393 " 0.437" Jack/Jack Swage Mount 0.219" 3/16 0.094 (+0.002/-0.001) Brass Gold Vertical

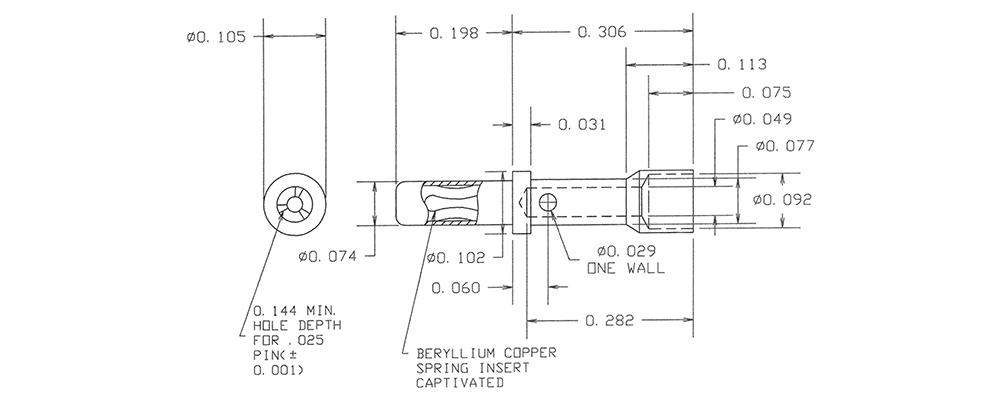

09-9058-1-063
09-9058-1-063
09-9058-1-063
0.025 0.185 " 0.504" - - - - - Brass Bright Tin-Lead -

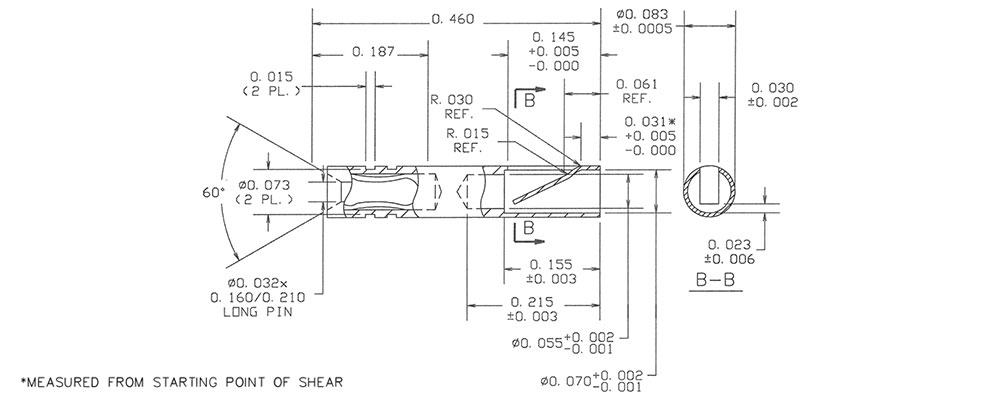

09-9238-1-03
09-9238-1-03
09-9238-1-03
0.032 0.160 " 0.460" Jack/Jack - - - - Beryllium Copper Gold -

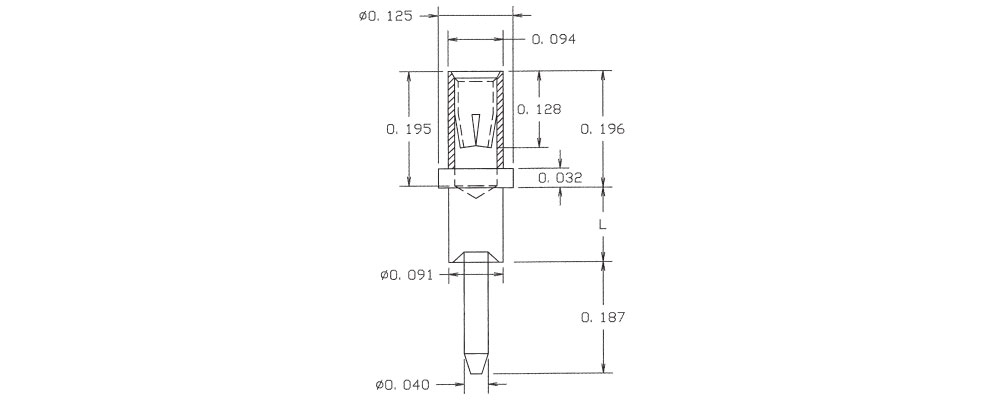

09-9605-2-04
09-9605-2-04
09-9605-2-04
0.032 - 0.046 0.195 " 0.477" Jack/Pin Swage Mount 0.094" 1/16 0.094 Brass Electro-Tin Vertical

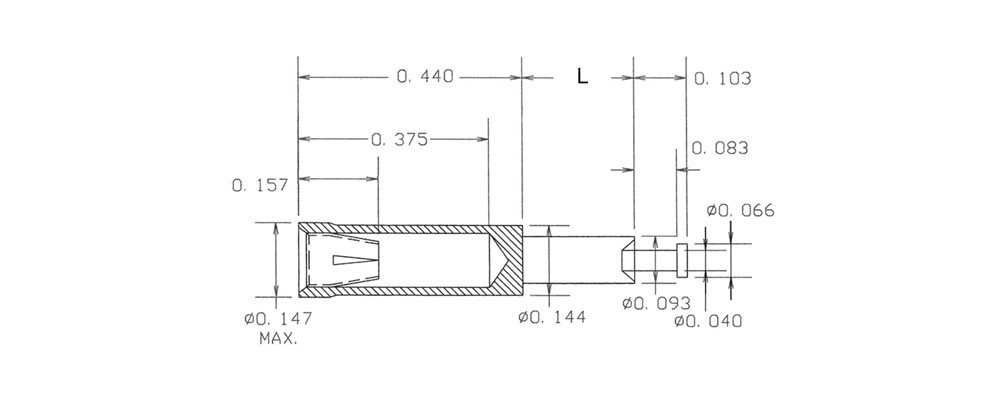

09-9642-2-03
09-9642-2-03
09-9642-2-03
0.065 - 0.082 0.375 " 0.637" Jack/Turret Swage Mount 0.094" 1/16 0.096 Brass Gold Vertical

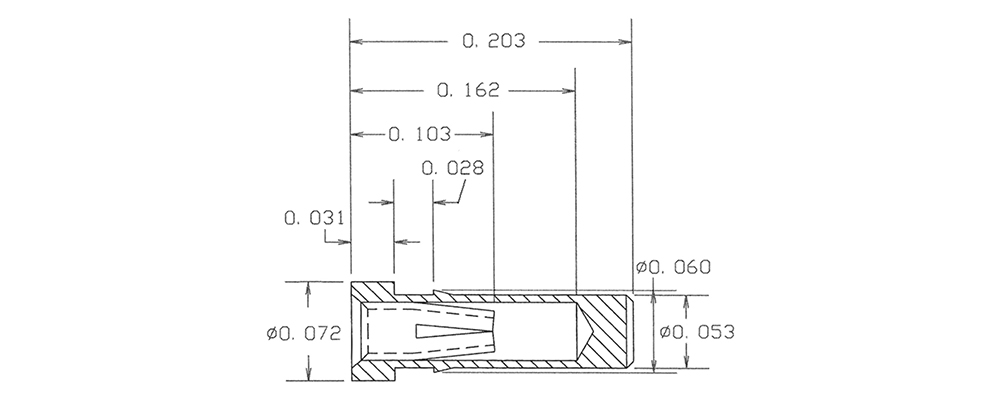

09-9680-1-063
09-9680-1-063
09-9680-1-063
0.015 - 0.025 0.162 " 0.203" - Press Fit/Solder - 1/16 - 1/8 0.057 Brass Bright Tin-Lead Vertical

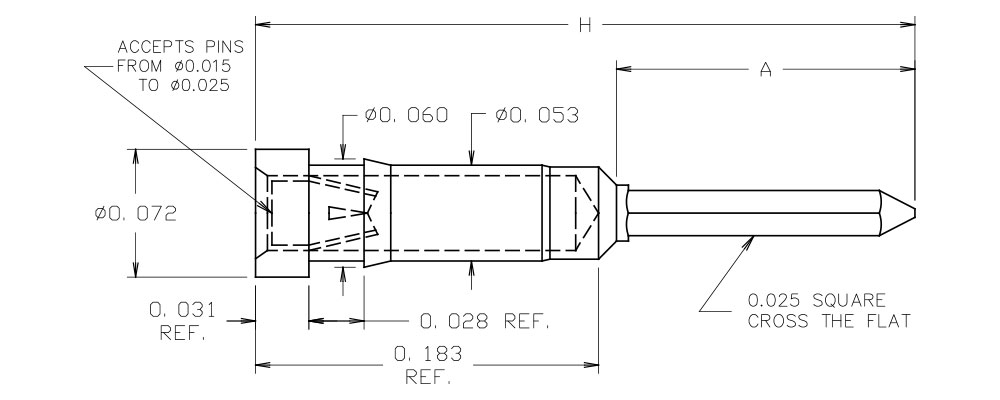

09-6010-3-04
09-6010-3-04
09-6010-3-04
0.015 - 0.025 0.140 " 0.693" Jack/Square Wrap Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Electro-Tin Vertical

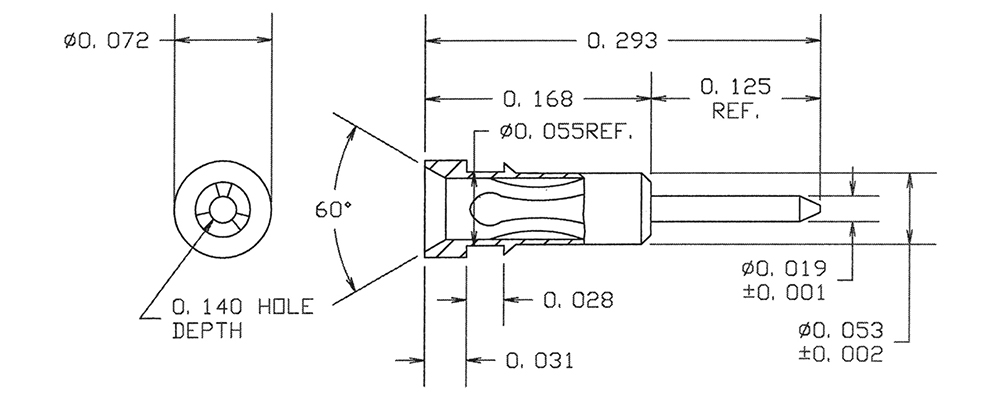

09-6027-1-063
09-6027-1-063
09-6027-1-063
0.015 - 0.025 0.140 " 0.293" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.058 Brass Bright Tin-Lead Vertical
09-9022-6-035
09-9022-6-035
09-9022-6-035
0.025 0.393 " 0.437" Jack/Jack Swage Mount 0.219" 3/16 0.094 (+0.002/-0.001) Brass Gold Vertical
09-9058-1-088
09-9058-1-088
09-9058-1-088
0.025 0.185 " 0.504" - - - - - Brass Bright Tin-Lead -
09-9238-1-035
09-9238-1-035
09-9238-1-035
0.032 0.160 " 0.460" Jack/Jack - - - - Beryllium Copper Gold -
09-9605-2-06
09-9605-2-06
09-9605-2-06
0.032 - 0.046 0.195 " 0.477" Jack/Pin Swage Mount 0.094" 1/16 0.094 Brass Electro-Tin Vertical
09-9642-2-035
09-9642-2-035
09-9642-2-035
0.065 - 0.082 0.375 " 0.637" Jack/Turret Swage Mount 0.094" 1/16 0.096 Brass Gold Vertical
09-9680-1-088
09-9680-1-088
09-9680-1-088
0.015 - 0.025 0.162 " 0.203" - Press Fit/Solder - 1/16 - 1/8 0.057 Brass Bright Tin-Lead Vertical
09-6010-3-06
09-6010-3-06
09-6010-3-06
0.015 - 0.025 0.140 " 0.693" Jack/Square Wrap Pin Press Fit/Solder - 1/16 - 3/32 0.057 Brass Electro-Tin Vertical
09-6027-1-088
09-6027-1-088
09-6027-1-088
0.015 - 0.025 0.140 " 0.293" Jack/Pin Press Fit/Solder - 1/16 - 3/32 0.058 Brass Bright Tin-Lead Vertical
09-9022-6-04
09-9022-6-04
09-9022-6-04
0.025 0.393 " 0.437" Jack/Jack Swage Mount 0.219" 3/16 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical

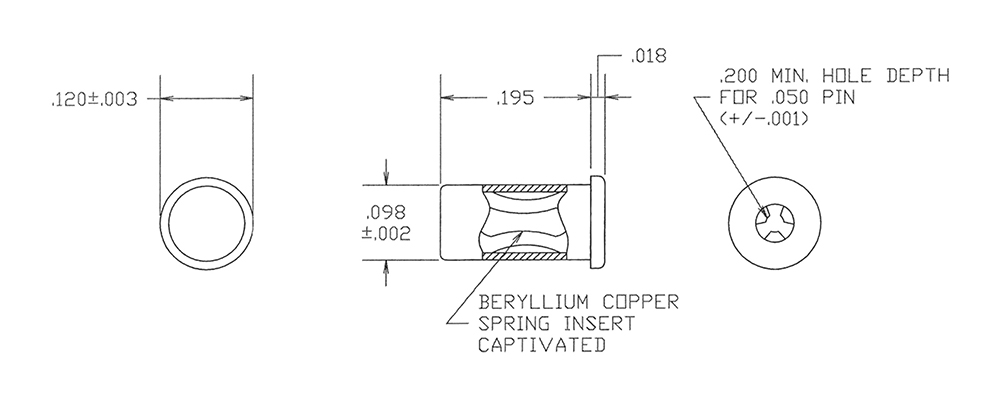

09-9061-1-03
09-9061-1-03
09-9061-1-03
0.050 0.200 " 0.213" - Solder - 1/32 - 5/32 0.102 Brass Gold Vertical
09-9238-1-04
09-9238-1-04
09-9238-1-04
0.032 0.160 " 0.460" Jack/Jack - - - - Beryllium Copper Electro-Tin -
09-9605-2-063
09-9605-2-063
09-9605-2-063
0.032 - 0.046 0.195 " 0.477" Jack/Pin Swage Mount 0.094" 1/16 0.094 Brass Bright Tin-Lead Vertical
