Non-Insulated
PC Jacks

Filter
09-9605-6-063
09-9605-6-063
09-9605-6-063
0.032 - 0.046 0.195 " 0.602" Jack/Pin Swage Mount 0.219" 3/16 0.094 Brass Bright Tin-Lead Vertical
09-9026-2-04
09-9026-2-04
09-9026-2-04
0.016 - 0.019 0.207 " 0.235" - Solder - 1/32 - 5/32 0.052 Brass Electro-Tin Vertical
09-9042-6-03
09-9042-6-03
09-9042-6-03
0.080 0.375 " 0.762" Jack/Turret Swage Mount 0.219" 3/16 0.094 (+0.002/-0.001) Brass Gold Vertical
09-9042-4-088
09-9042-4-088
09-9042-4-088
0.080 0.375 " 0.699" Jack/Turret Swage Mount 0.156" 1/8 0.094 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9026-2-06
09-9026-2-06
09-9026-2-06
0.016 - 0.019 0.207 " 0.235" - Solder - 1/32 - 5/32 0.052 Brass Electro-Tin Vertical
09-9605-6-088
09-9605-6-088
09-9605-6-088
0.032 - 0.046 0.195 " 0.602" Jack/Pin Swage Mount 0.219" 3/16 0.094 Brass Bright Tin-Lead Vertical
09-9003-6-06
09-9003-6-06
09-9003-6-06
0.040 0.195 " 0.473" Jack/Slotted Swage Mount 0.219" 3/16 0.129 Brass Electro-Tin Vertical
09-9626-1-035
09-9626-1-035
09-9626-1-035
0.025 - 0.037 0.180 " 0.320" Jack/Pin Solder - 1/32 - 3/32 0.044 Brass Gold Vertical
09-9626-1-063
09-9626-1-063
09-9626-1-063
0.025 - 0.037 0.180 " 0.320" Jack/Pin Solder - 1/32 - 3/32 0.044 Brass Bright Tin-Lead Vertical
09-9626-1-088
09-9626-1-088
09-9626-1-088
0.025 - 0.037 0.180 " 0.320" Jack/Pin Solder - 1/32 - 3/32 0.044 Brass Bright Tin-Lead Vertical
09-9049-1-035
09-9049-1-035
09-9049-1-035
0.016 - 0.020 0.216 " 0.240" - Solder - 1/32 - 1/8 0.052 (+0.002/-0.001) Brass Gold Vertical

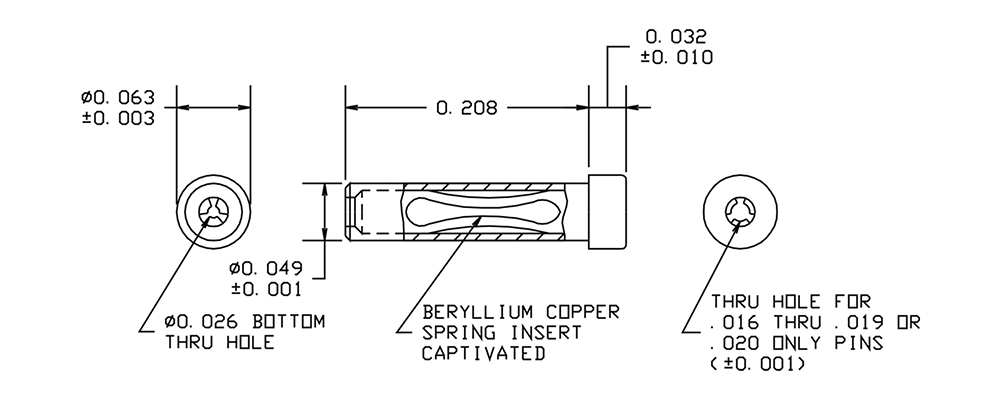

09-9049-1-088
09-9049-1-088
09-9049-1-088
0.016 - 0.020 0.216 " 0.240" - Solder - 1/32 - 1/8 0.052 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9051-1-03
09-9051-1-03
09-9051-1-03
0.016 - 0.020 0.210 " 0.287" Jack/Turret Swage Mount 0.041" 1/32 0.076 Brass Gold Vertical
09-9003-6-063
09-9003-6-063
09-9003-6-063
0.040 0.195 " 0.473" Jack/Slotted Swage Mount 0.219" 3/16 0.129 Brass Bright Tin-Lead Vertical
09-9022-2-03
09-9022-2-03
09-9022-2-03
0.025 0.280 " 0.312" Jack/Jack Swage Mount 0.094" 1/16 0.094 (+0.002/-0.001) Brass Gold Vertical
09-9022-2-063
09-9022-2-063
09-9022-2-063
0.025 0.280 " 0.312" Jack/Jack Swage Mount 0.094" 1/16 0.094 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9003-6-088
09-9003-6-088
09-9003-6-088
0.040 0.195 " 0.473" Jack/Slotted Swage Mount 0.219" 3/16 0.129 Brass Bright Tin-Lead Vertical
09-9003-6-035
09-9003-6-035
09-9003-6-035
0.040 0.195 " 0.473" Jack/Slotted Swage Mount 0.219" 3/16 0.129 Brass Gold Vertical
09-9662-2-063
09-9662-2-063
09-9662-2-063
0.015 - 0.021 0.092 " 0.138" - Solder - 1/32 - 3/32 0.041 Brass Bright Tin-Lead Vertical
09-9662-2-088
09-9662-2-088
09-9662-2-088
0.015 - 0.021 0.092 " 0.138" - Solder - 1/32 - 3/32 0.041 Brass Bright Tin-Lead Vertical
