Non-Insulated
PC Jacks

Filter

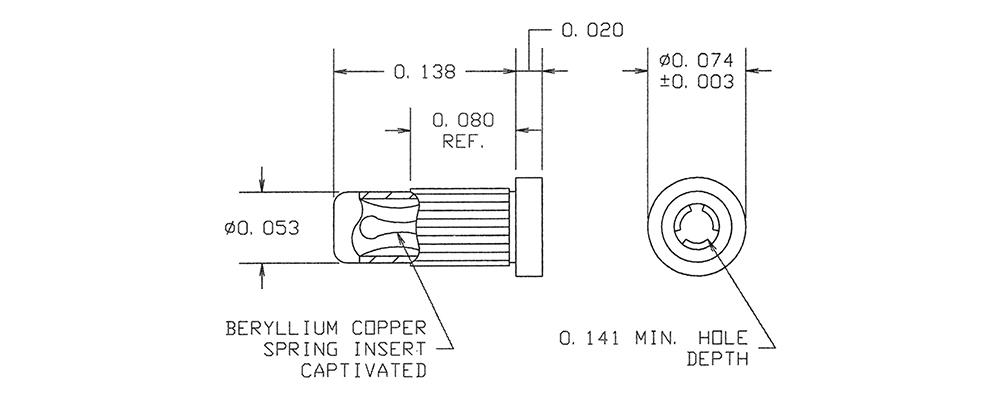

09-9171-1-03
09-9171-1-03
09-9171-1-03
0.025 0.141 " 0.158" - Press Fit/Solder - 1/16 - 3/32 0.055 Brass Gold Vertical

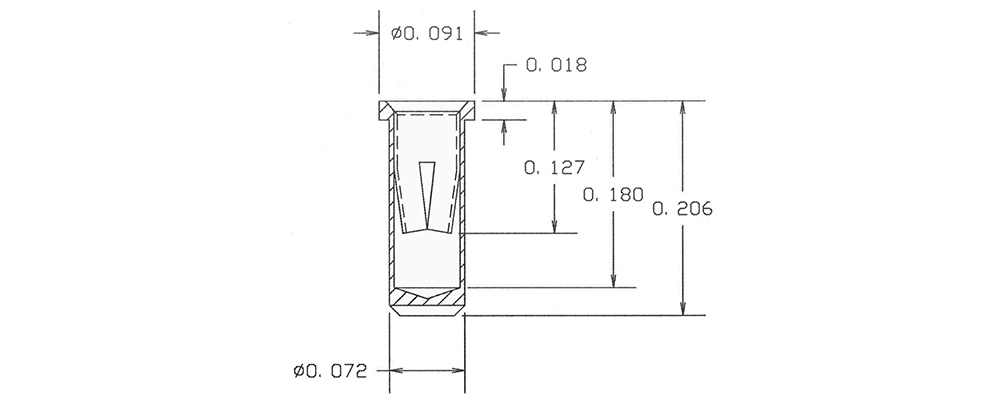

09-9601-1-035
09-9601-1-035
09-9601-1-035
0.032 - 0.046 0.180 " 0.206" - Solder - 1/32 - 3/16 0.075 Brass Gold Vertical
09-9629-1-088
09-9629-1-088
09-9629-1-088
0.025 - 0.037 0.250 " 0.700" Jack/Pin Solder - 1/32 - 9/16 0.044 Brass Bright Tin-Lead Vertical

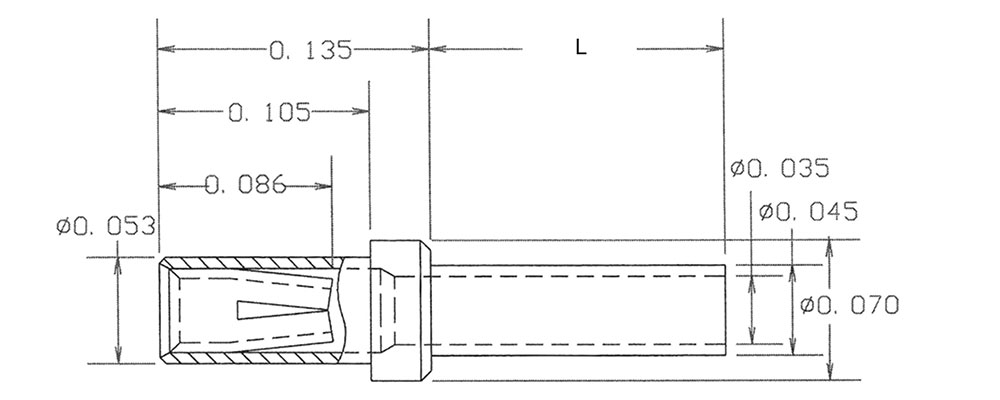

09-9670-3-06
09-9670-3-06
09-9670-3-06
0.015 - 0.025 0.166 " 0.250" - Swage Mount 0.115" 3/32 0.049 Brass Electro-Tin Vertical

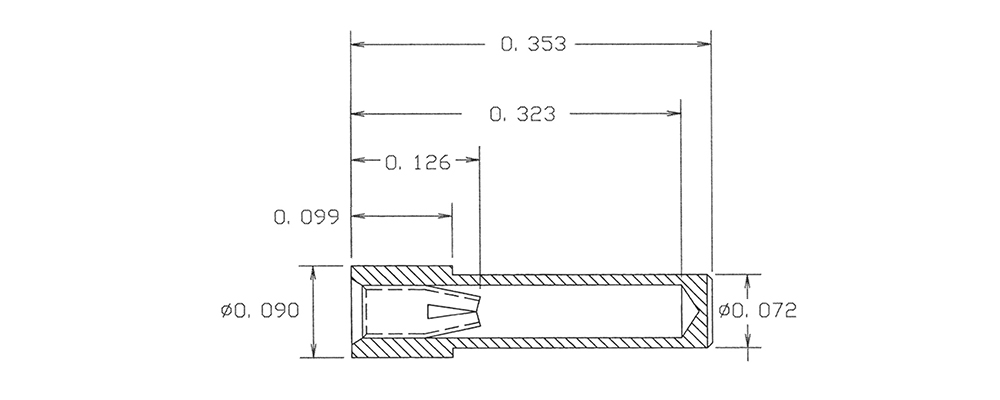

09-9737-1-035
09-9737-1-035
09-9737-1-035
0.032 - 0.046 0.323 " 0.353" - Solder - 1/32 - 3/16 0.076 Brass Gold Vertical

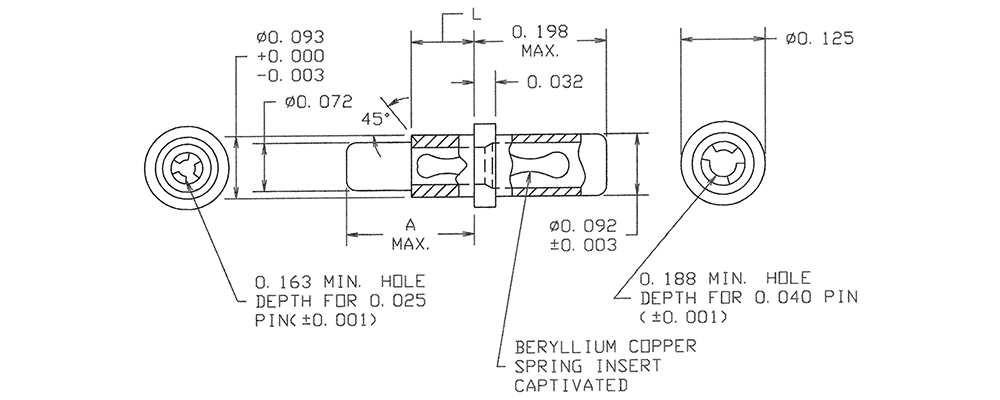

09-9019-2-03
09-9019-2-03
09-9019-2-03
(0.025 & 0.040) 0.163 " 0.389" Jack/Jack Swage Mount 0.094" 1/16 0.094 (+0.002/-0.001) Brass Gold Vertical

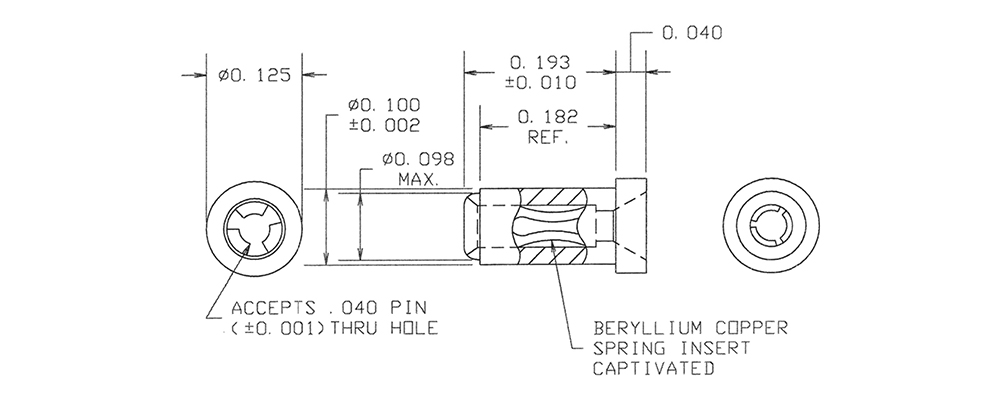

09-9047-1-063
09-9047-1-063
09-9047-1-063
0.040 0.186 " 0.233" - Solder - 1/32 - 1/8 0.104 Brass Bright Tin-Lead Vertical
09-9171-1-035
09-9171-1-035
09-9171-1-035
0.025 0.141 " 0.158" - Press Fit/Solder - 1/16 - 3/32 0.055 Brass Gold Vertical
09-9601-1-04
09-9601-1-04
09-9601-1-04
0.032 - 0.046 0.180 " 0.206" - Solder - 1/32 - 3/16 0.075 Brass Electro-Tin Vertical

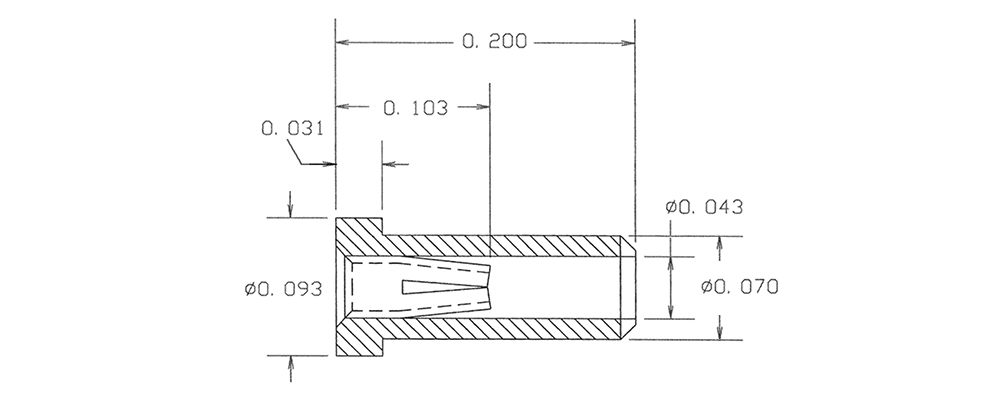

09-9630-1-03
09-9630-1-03
09-9630-1-03
0.015 - 0.025 0.133 " 0.200" - Solder - 1/32 - 1/8 0.076 Brass Gold Vertical
09-9670-3-063
09-9670-3-063
09-9670-3-063
0.015 - 0.025 0.166 " 0.250" - Swage Mount 0.115" 3/32 0.049 Brass Bright Tin-Lead Vertical
09-9737-1-04
09-9737-1-04
09-9737-1-04
0.032 - 0.046 0.323 " 0.353" - Solder - 1/32 - 3/16 0.076 Brass Electro-Tin Vertical
09-9019-2-035
09-9019-2-035
09-9019-2-035
(0.025 & 0.040) 0.163 " 0.389" Jack/Jack Swage Mount 0.094" 1/16 0.094 (+0.002/-0.001) Brass Gold Vertical
09-9047-1-088
09-9047-1-088
09-9047-1-088
0.040 0.186 " 0.233" - Solder - 1/32 - 1/8 0.104 Brass Bright Tin-Lead Vertical
09-9171-1-04
09-9171-1-04
09-9171-1-04
0.025 0.141 " 0.158" - Press Fit/Solder - 1/16 - 3/32 0.055 Brass Electro-Tin Vertical
09-9601-1-06
09-9601-1-06
09-9601-1-06
0.032 - 0.046 0.180 " 0.206" - Solder - 1/32 - 3/16 0.075 Brass Electro-Tin Vertical
09-9630-1-035
09-9630-1-035
09-9630-1-035
0.015 - 0.025 0.133 " 0.200" - Solder - 1/32 - 1/8 0.076 Brass Gold Vertical
09-9670-3-088
09-9670-3-088
09-9670-3-088
0.015 - 0.025 0.166 " 0.250" - Swage Mount 0.115" 3/32 0.049 Brass Bright Tin-Lead Vertical
09-9737-1-06
09-9737-1-06
09-9737-1-06
0.032 - 0.046 0.323 " 0.353" - Solder - 1/32 - 3/16 0.076 Brass Electro-Tin Vertical
09-9019-2-04
09-9019-2-04
09-9019-2-04
(0.025 & 0.040) 0.163 " 0.389" Jack/Jack Swage Mount 0.094" 1/16 0.094 (+0.002/-0.001) Brass Electro-Tin Vertical
