Non-Insulated
PC Jacks

Filter

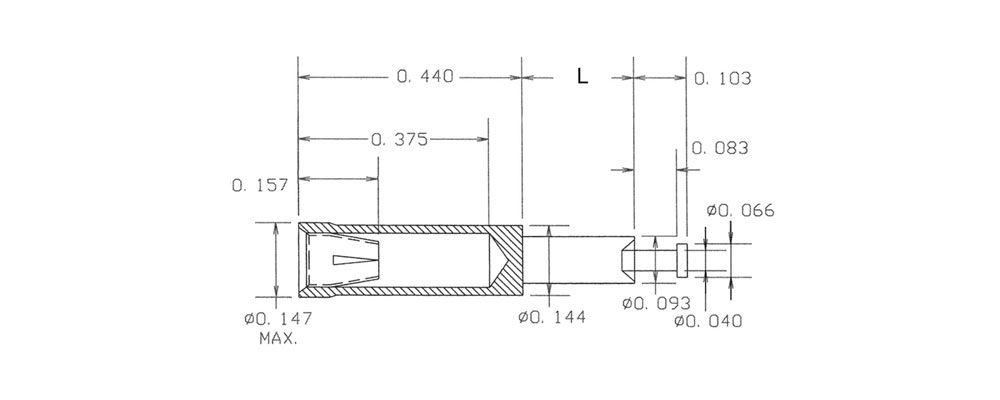

09-9642-3-035
09-9642-3-035
09-9642-3-035
0.065 - 0.082 0.375 " 0.668" Jack/Turret Swage Mount 0.125" 3/32 0.096 Brass Gold Vertical

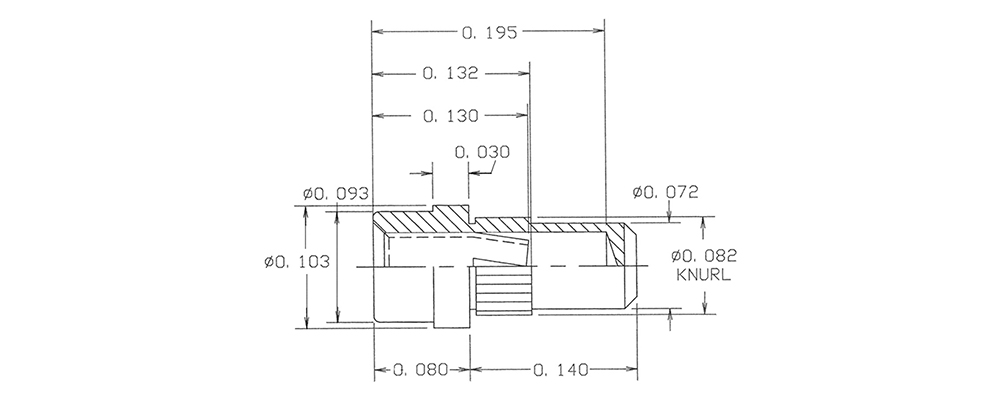

09-9681-1-088
09-9681-1-088
09-9681-1-088
0.032 - 0.046 0.195 " 0.220" - Press Fit/Solder - 1/16 - 3/32 0.078 Brass Bright Tin-Lead Vertical

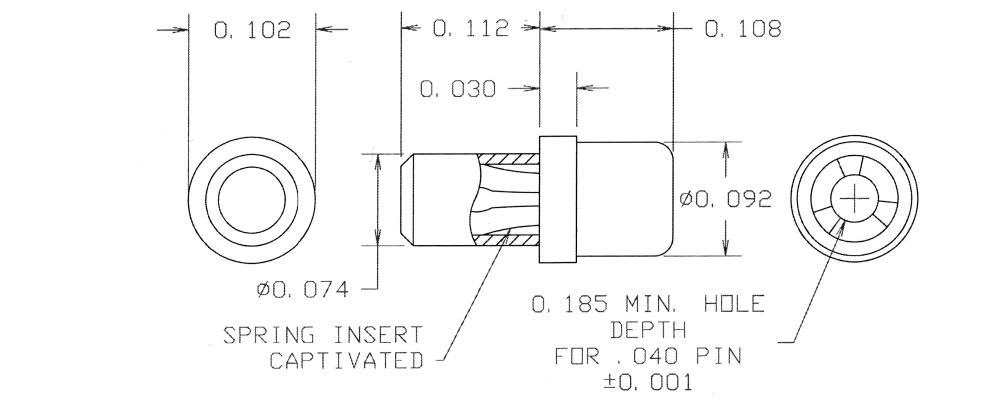

09-9248-1-06
09-9248-1-06
09-9248-1-06
0.040 0.185 " 0.220" - Press Fit/Solder - 1/32 - 1/16 0.076 (+0.002/-0.001) Brass Electro-Tin Vertical

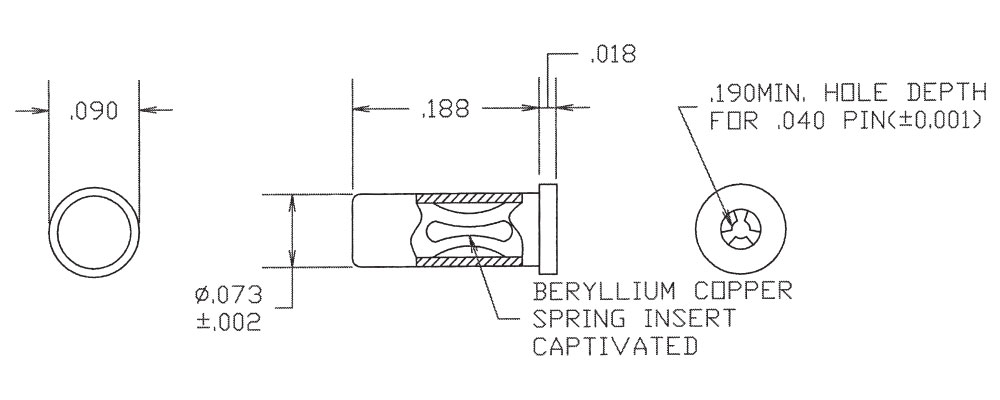

09-9001-1-063
09-9001-1-063
09-9001-1-063
0.040 0.190 " 0.206" - Solder - 1/32 - 5/32 0.076 (+0.002/-0.001) Brass Bright Tin-Lead Vertical

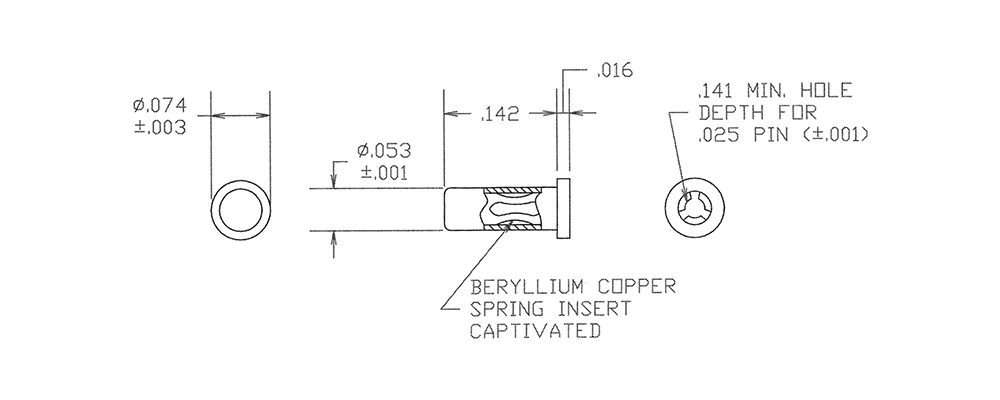

09-9024-1-04
09-9024-1-04
09-9024-1-04
0.025 0.141 " 0.158" - Solder - 1/32 - 3/32 0.055 (+0.002/-0.001) Brass Electro-Tin Vertical

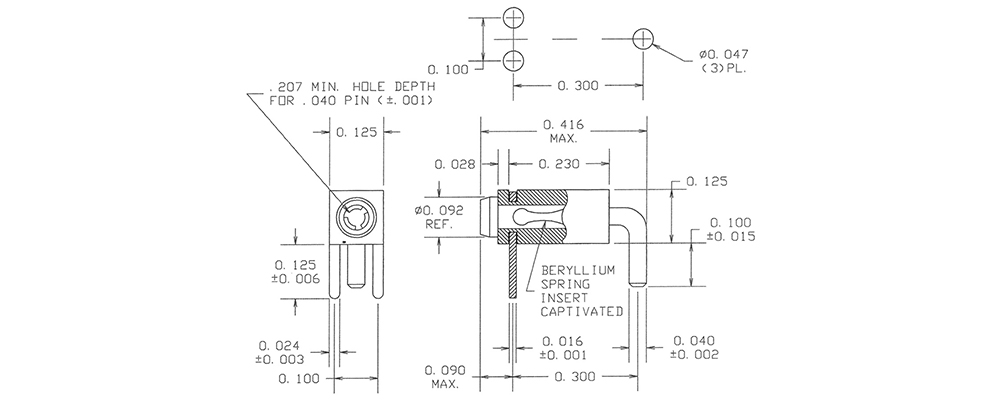

09-9064-1-03
09-9064-1-03
09-9064-1-03
0.040 0.207 " 0.416" Jack/Pin Solder - 1/32 - 1/16 0.047 Brass Gold Horizontal

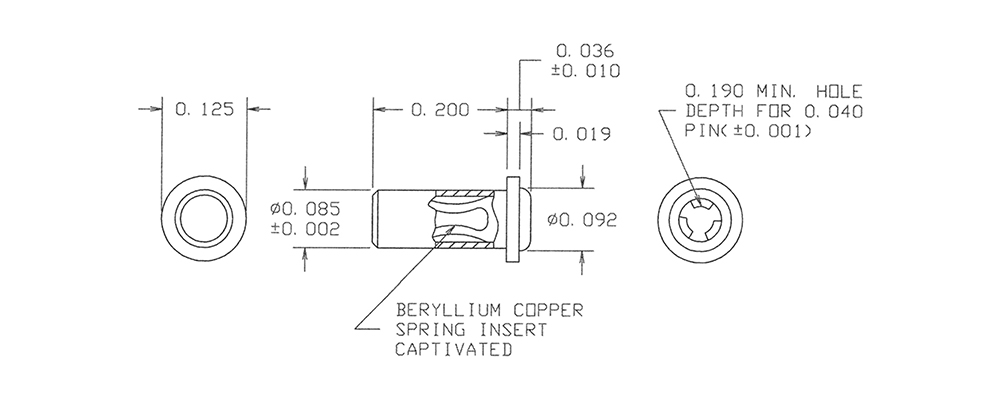

09-9244-1-04
09-9244-1-04
09-9244-1-04
0.040 0.190 " 0.236" - Solder - 1/32 - 5/32 0.089 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9605-3-063
09-9605-3-063
09-9605-3-063
0.032 - 0.046 0.195 " 0.508" Jack/Pin Swage Mount 0.125" 3/32 0.094 Brass Bright Tin-Lead Vertical
09-9642-3-04
09-9642-3-04
09-9642-3-04
0.065 - 0.082 0.375 " 0.668" Jack/Turret Swage Mount 0.125" 3/32 0.096 Brass Electro-Tin Vertical

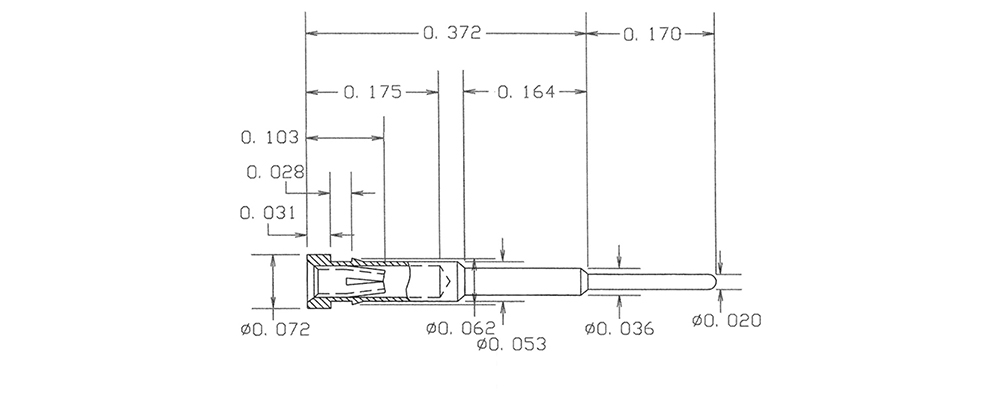

09-9682-1-03
09-9682-1-03
09-9682-1-03
0.015 - 0.025 0.175 " 0.572" Jack/Pin Press Fit/Solder - 1/16 - 1/8 0.059 Brass Gold Vertical
09-9248-1-063
09-9248-1-063
09-9248-1-063
0.040 0.185 " 0.220" - Press Fit/Solder - 1/32 - 1/16 0.076 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9001-1-088
09-9001-1-088
09-9001-1-088
0.040 0.190 " 0.206" - Solder - 1/32 - 5/32 0.076 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9024-1-06
09-9024-1-06
09-9024-1-06
0.025 0.141 " 0.158" - Solder - 1/32 - 3/32 0.055 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9064-1-035
09-9064-1-035
09-9064-1-035
0.040 0.207 " 0.416" Jack/Pin Solder - 1/32 - 1/16 0.047 Brass Gold Horizontal
09-9244-1-06
09-9244-1-06
09-9244-1-06
0.040 0.190 " 0.236" - Solder - 1/32 - 5/32 0.089 (+0.002/-0.001) Brass Electro-Tin Vertical

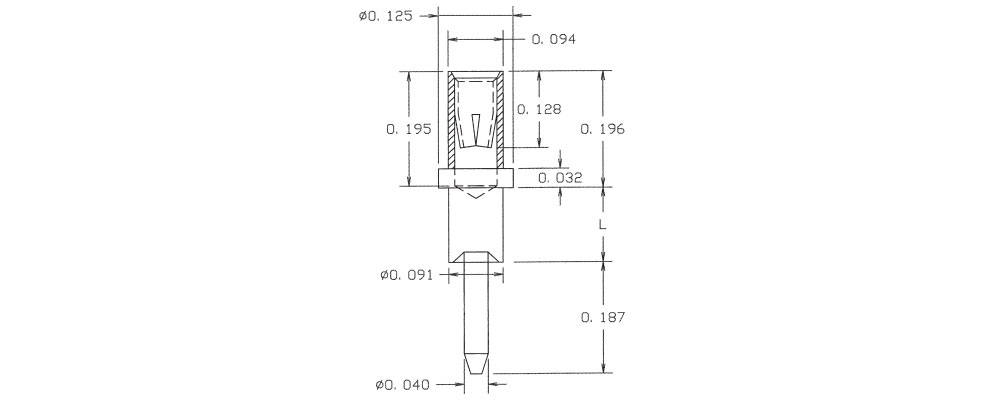

09-9605-3-088
09-9605-3-088
09-9605-3-088
0.032 - 0.046 0.195 " 0.508" Jack/Pin Swage Mount 0.125" 3/32 0.094 Brass Bright Tin-Lead Vertical
09-9642-3-06
09-9642-3-06
09-9642-3-06
0.065 - 0.082 0.375 " 0.668" Jack/Turret Swage Mount 0.125" 3/32 0.096 Brass Electro-Tin Vertical
09-9682-1-035
09-9682-1-035
09-9682-1-035
0.015 - 0.025 0.175 " 0.572" Jack/Pin Press Fit/Solder - 1/16 - 1/8 0.059 Brass Gold Vertical
09-9248-1-088
09-9248-1-088
09-9248-1-088
0.040 0.185 " 0.220" - Press Fit/Solder - 1/32 - 1/16 0.076 (+0.002/-0.001) Brass Bright Tin-Lead Vertical

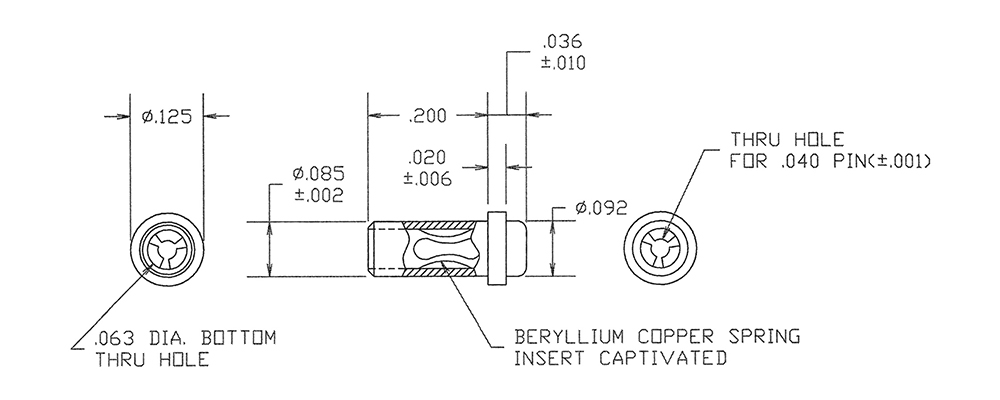

09-9002-1-03
09-9002-1-03
09-9002-1-03
0.040 0.207 " 0.236" - Solder - 1/32 - 1/8 0.089 (+0.002/-0.001) Brass Gold Vertical
