Insulated
PC Jacks

Filter

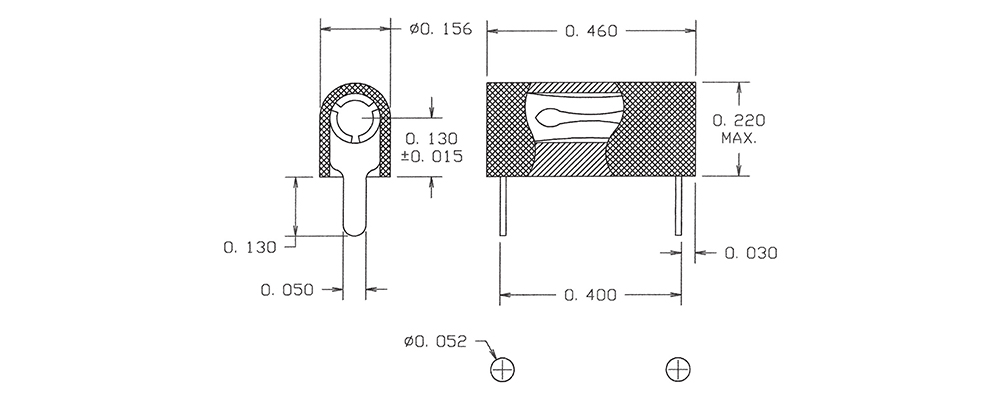

09-9294-1-08814
09-9294-1-08814
09-9294-1-08814
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Yellow -
09-9011-1-03511
09-9011-1-03511
09-9011-1-03511
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Gold PTFE Brown M39024/12-15

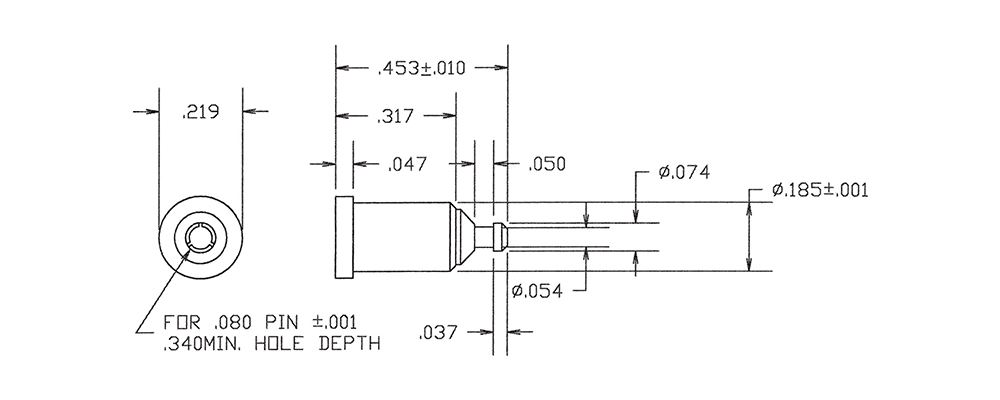

09-9084-1-06317
09-9084-1-06317
09-9084-1-06317
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Bright Tin-Lead PTFE Violet -
09-9201-1-0313
09-9201-1-0313
09-9201-1-0313
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Orange -

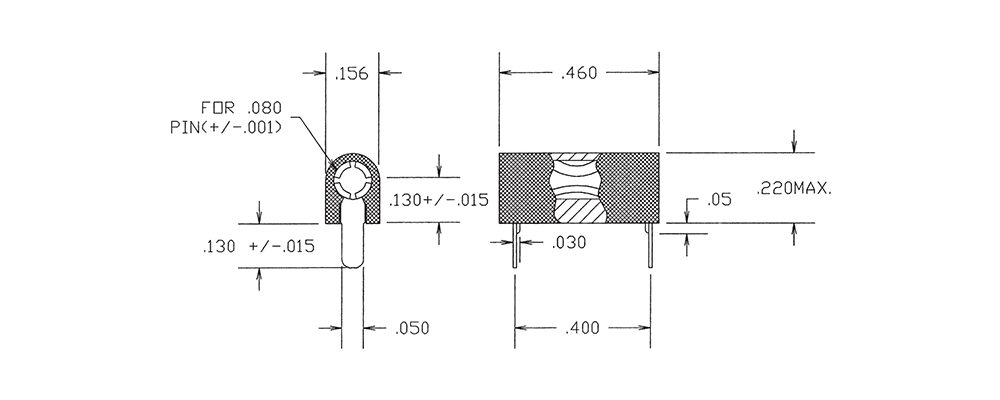

09-9252-1-04419
09-9252-1-04419
09-9252-1-04419
0.080 0.400 " 0.460" - Solder 0.052  1/32 Horizontal - - Nylon White -

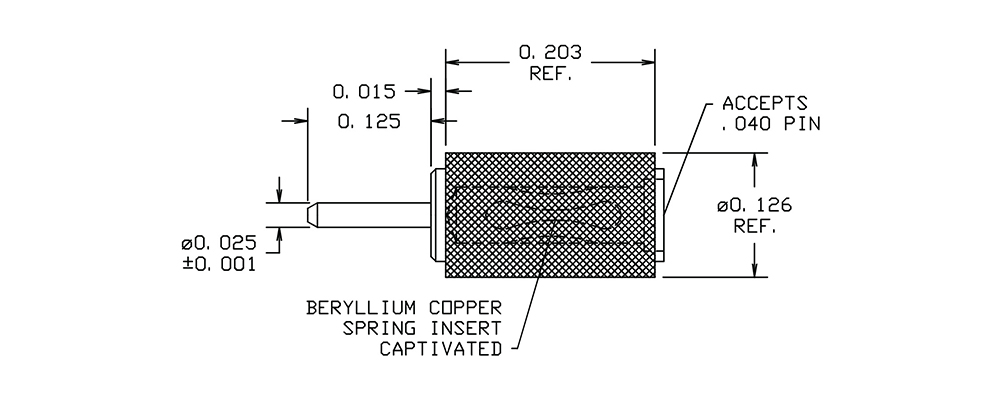

09-9010-1-0619
09-9010-1-0619
09-9010-1-0619
0.040 0.195 " 0.343" Jack/Pin Solder 0.027 1/32 - 1/16 Vertical Brass Electro-Tin Polyolefin White -

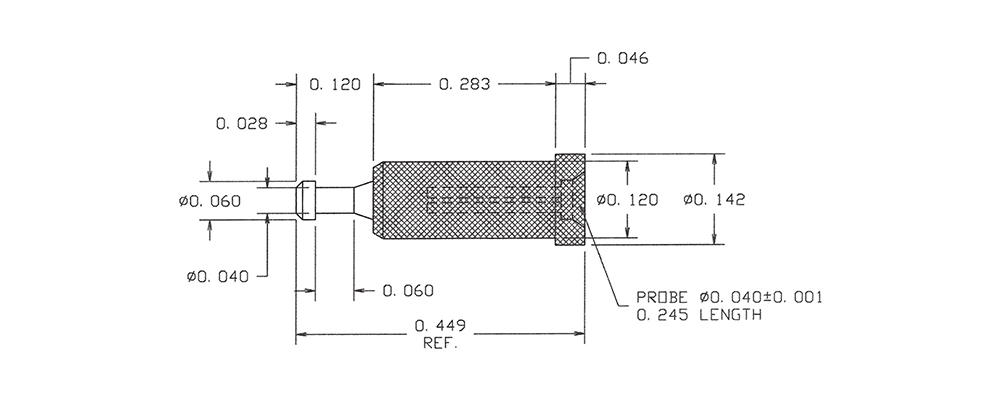

1128-03-03515
1128-03-03515
1128-03-03515
0.040 0.245 " 0.449" Jack/Turret Press Fit 0.108 1/32 - 15/64 Vertical - - PTFE Green -
1128-17-03511
1128-17-03511
1128-17-03511
0.050 0.195 " 0.287" Jack/Turret Press Fit 0.172 1/32 - 1/4 Vertical - - PTFE Brown -

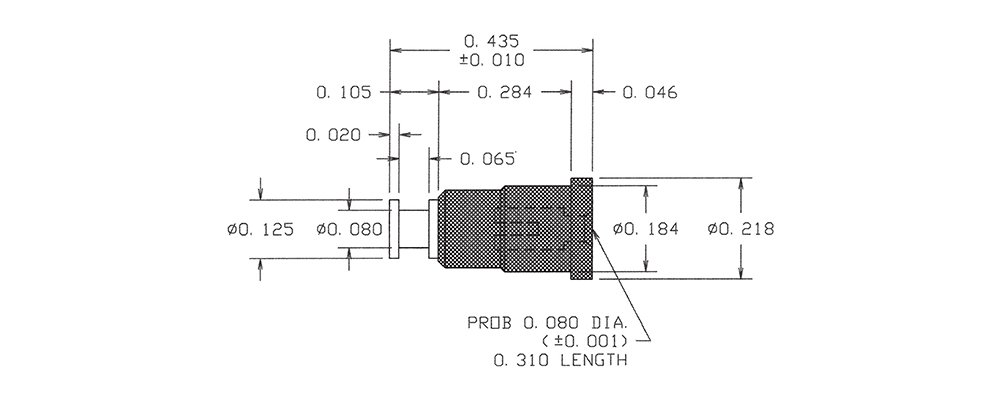

1128-35-03517
1128-35-03517
1128-35-03517
0.080 0.310 " 0.435" Jack/Turret Press Fit 0.171 1/32 - 3/32 Vertical - - PTFE Violet -

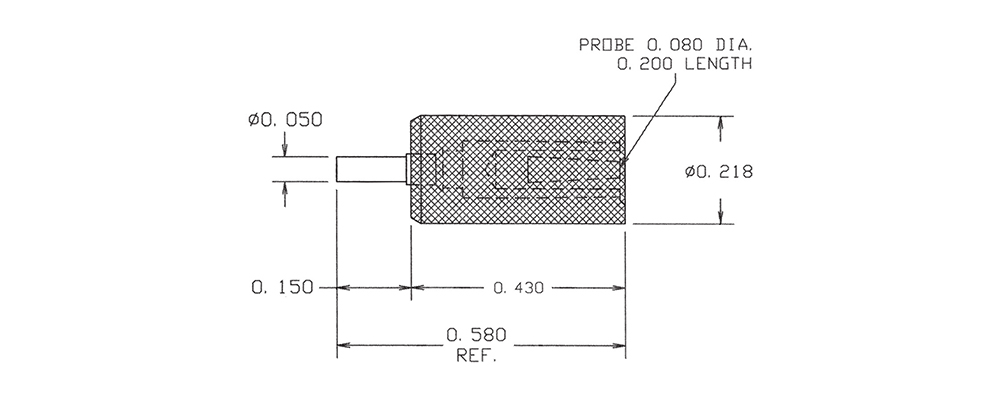

1128-58-03513
1128-58-03513
1128-58-03513
0.080 0.200 " 0.580" Jack/Pin Solder 0.052  1/32 - 3/32 Vertical - - PTFE Orange -

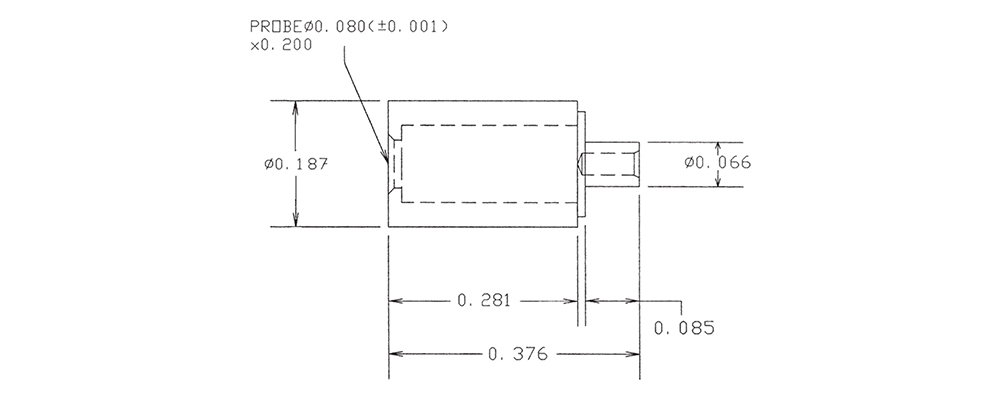

1138-06-0319
1138-06-0319
1138-06-0319
0.080 0.200 " 0.376" - Swage Mount 0.068 1/16 Vertical - - PTFE White -
09-9294-1-08815
09-9294-1-08815
09-9294-1-08815
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Green -
09-9011-1-03512
09-9011-1-03512
09-9011-1-03512
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Gold PTFE Red M39024/12-13
09-9084-1-06318
09-9084-1-06318
09-9084-1-06318
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Bright Tin-Lead PTFE Gray -
09-9201-1-0314
09-9201-1-0314
09-9201-1-0314
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Yellow -
09-9265-1-0310
09-9265-1-0310
09-9265-1-0310
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Black -
09-9055-1-0614
09-9055-1-0614
09-9055-1-0614
0.025 0.145 " 0.431" Jack/Pin - - - - Brass Electro-Tin Polyolefin Yellow -
1128-03-03516
1128-03-03516
1128-03-03516
0.040 0.245 " 0.449" Jack/Turret Press Fit 0.108 1/32 - 15/64 Vertical - - PTFE Blue -
1128-17-03512
1128-17-03512
1128-17-03512
0.050 0.195 " 0.287" Jack/Turret Press Fit 0.172 1/32 - 1/4 Vertical - - PTFE Red -
1128-35-03518
1128-35-03518
1128-35-03518
0.080 0.310 " 0.435" Jack/Turret Press Fit 0.171 1/32 - 3/32 Vertical - - PTFE Gray -
