Insulated
PC Jacks

Filter
09-9011-1-0410
09-9011-1-0410
09-9011-1-0410
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Black -

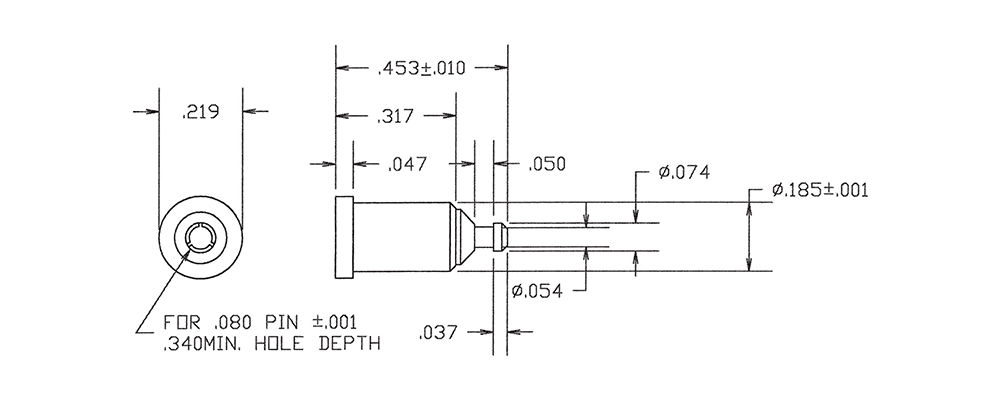

09-9084-1-08816
09-9084-1-08816
09-9084-1-08816
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Bright Tin-Lead PTFE Blue -

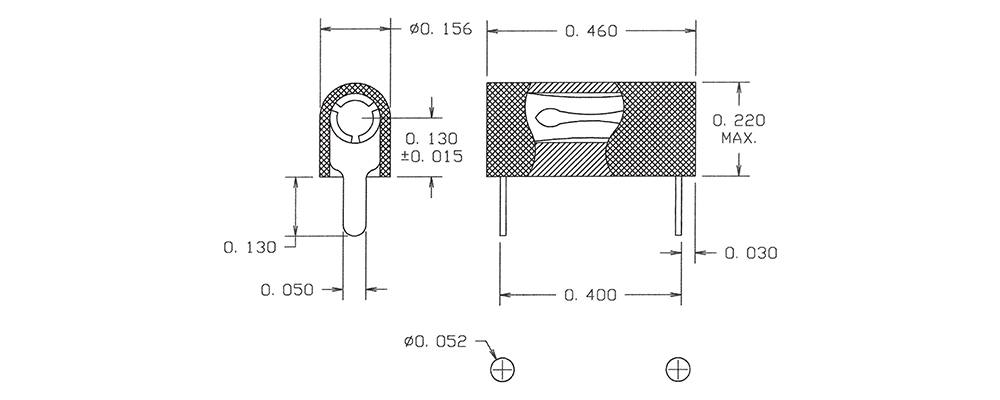

09-9201-1-03512
09-9201-1-03512
09-9201-1-03512
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Red M39024/11-02G
09-9265-1-0318
09-9265-1-0318
09-9265-1-0318
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Gray -
09-9059-1-0410
09-9059-1-0410
09-9059-1-0410
0.025 0.185 " 0.750" - - - - - Brass Electro-Tin Polyolefin Black -

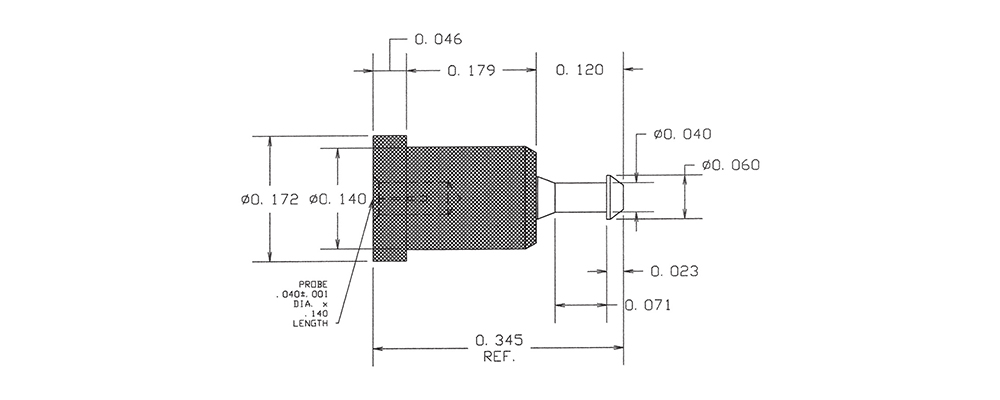

1128-04-030114
1128-04-030114
1128-04-030114
0.040 0.140 " 0.345" Jack/Turret Press Fit 0.127 1/32 - 1/8 Vertical - - PTFE Yellow -

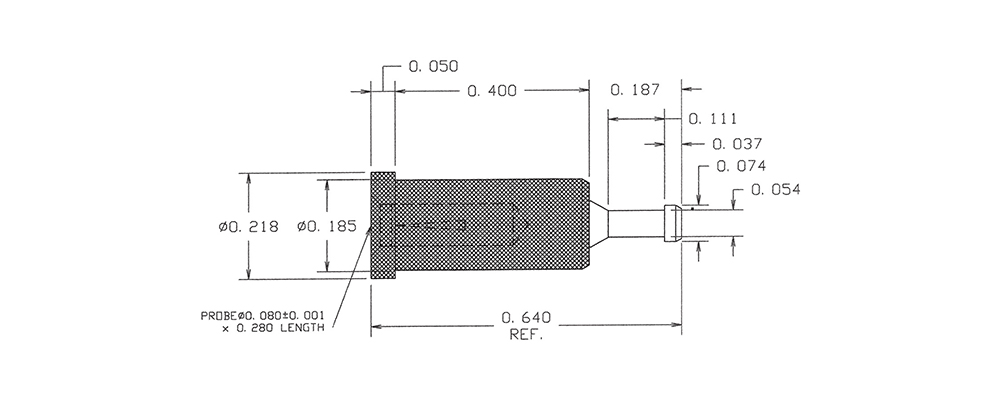

1128-18-030110
1128-18-030110
1128-18-030110
0.080 0.280 " 0.640" Jack/Turret Press Fit 0.172 1/32 - 23/64 Vertical - - PTFE Black -
1128-36-0316
1128-36-0316
1128-36-0316
0.040 0.135 " 0.408" Jack/Pin Press Fit 0.136 1/32 - 1/8 Vertical - - PTFE Blue -
1128-59-0312
1128-59-0312
1128-59-0312
0.080 0.280 " 0.650" Jack/Pin Solder 0.052  1/32 - 3/32 Vertical - - PTFE Red -

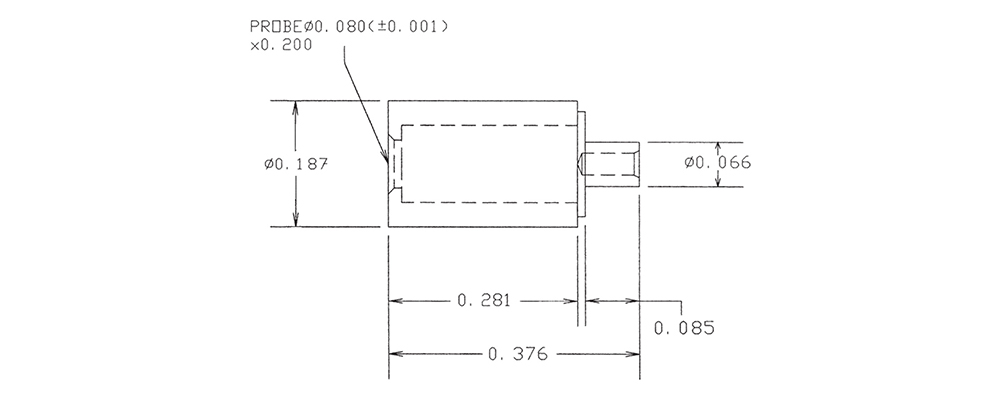

1138-06-03518
1138-06-03518
1138-06-03518
0.080 0.200 " 0.376" - Swage Mount 0.068 1/16 Vertical - - PTFE Gray -

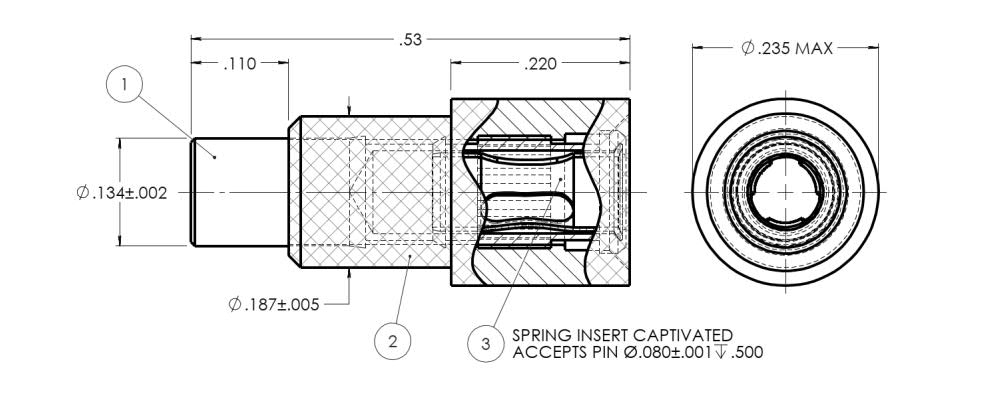

09-9295-1-03514
09-9295-1-03514
09-9295-1-03514
0.080 0.500 " 0.530" Jack/Pin Press Fit 0.178 1/32 - 5/32 Vertical Brass Gold PTFE Yellow -
09-9011-1-0411
09-9011-1-0411
09-9011-1-0411
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Brown -
09-9084-1-08817
09-9084-1-08817
09-9084-1-08817
0.080 0.340 " 0.453" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical Brass Bright Tin-Lead PTFE Violet -
09-9201-1-03513
09-9201-1-03513
09-9201-1-03513
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Orange M39024/11-06G
09-9265-1-0319
09-9265-1-0319
09-9265-1-0319
0.040 0.190 " 0.605" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE White -

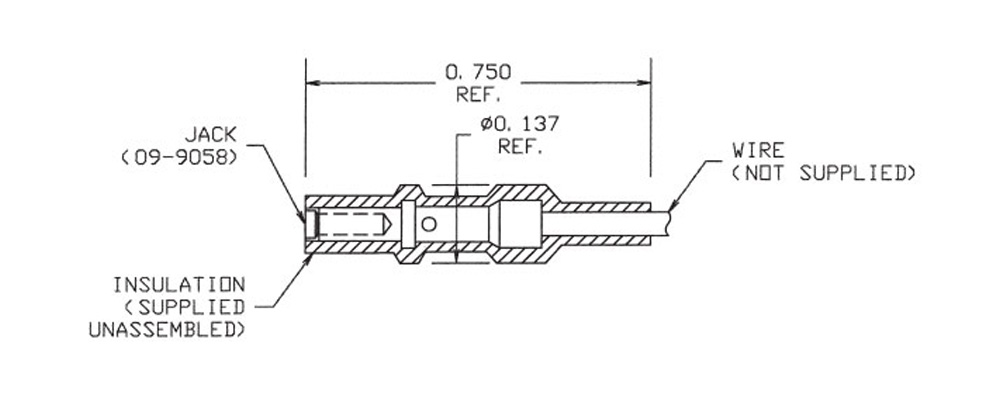

09-9059-1-0412
09-9059-1-0412
09-9059-1-0412
0.025 0.185 " 0.750" - - - - - Brass Electro-Tin Polyolefin Red -
1128-04-030115
1128-04-030115
1128-04-030115
0.040 0.140 " 0.345" Jack/Turret Press Fit 0.127 1/32 - 1/8 Vertical - - PTFE Green -
1128-18-030111
1128-18-030111
1128-18-030111
0.080 0.280 " 0.640" Jack/Turret Press Fit 0.172 1/32 - 23/64 Vertical - - PTFE Brown -
1128-36-0317
1128-36-0317
1128-36-0317
0.040 0.135 " 0.408" Jack/Pin Press Fit 0.136 1/32 - 1/8 Vertical - - PTFE Violet -
1128-59-0313
1128-59-0313
1128-59-0313
0.080 0.280 " 0.650" Jack/Pin Solder 0.052  1/32 - 3/32 Vertical - - PTFE Orange -
