Panel Jacks / Terminals
Thread Mount

Filter

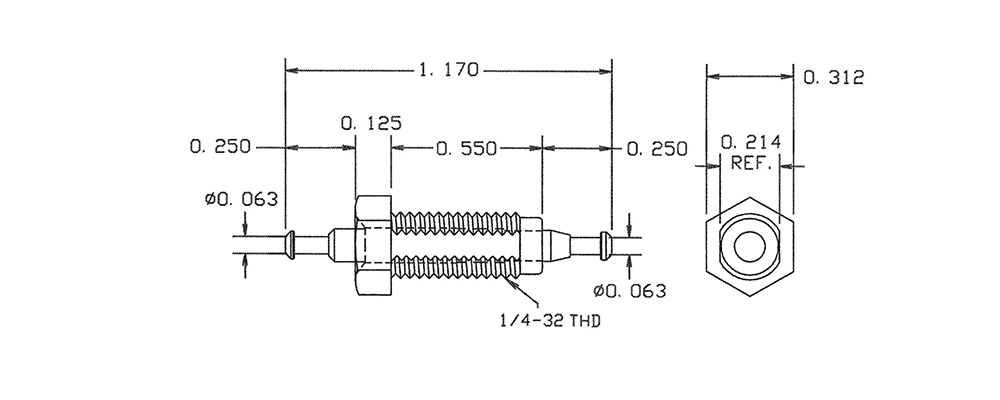

09-9152-1-04419
09-9152-1-04419
09-9152-1-04419
1.170" - 1/4-32 Nut - 0.257 Up to 3/16 Turret/Turret Brass Bright Tin - - Nylon   White -

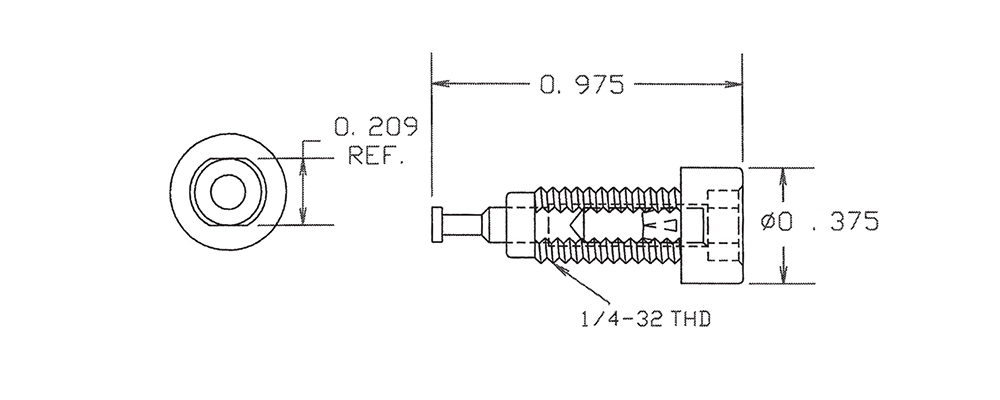

09-9183-1-0310
09-9183-1-0310
09-9183-1-0310
0.975" 0.080 1/4-32 Nut 0.620 " 0.257 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Black -
09-9183-1-0311
09-9183-1-0311
09-9183-1-0311
0.975" 0.080 1/4-32 Nut 0.620 " 0.257 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Brown -
09-9183-1-0312
09-9183-1-0312
09-9183-1-0312
0.975" 0.080 1/4-32 Nut 0.620 " 0.257 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Red -
