Panel Jacks / Terminals
Thread Mount

Filter

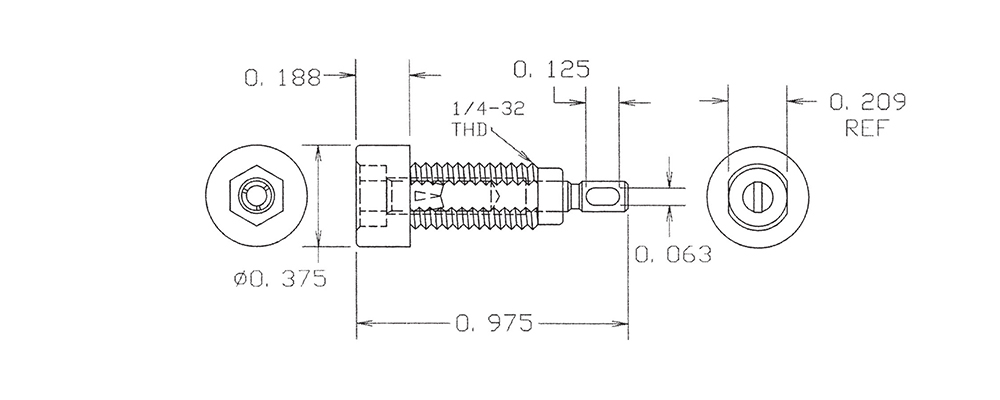

09-9184-1-04413
09-9184-1-04413
09-9184-1-04413
0.975" 0.080 1/4-32 Nut 0.620 " 0.257 Up to 3/16 Jack/Eyelet Brass Bright Tin Beryllium Copper Bright Tin Nylon   Orange -

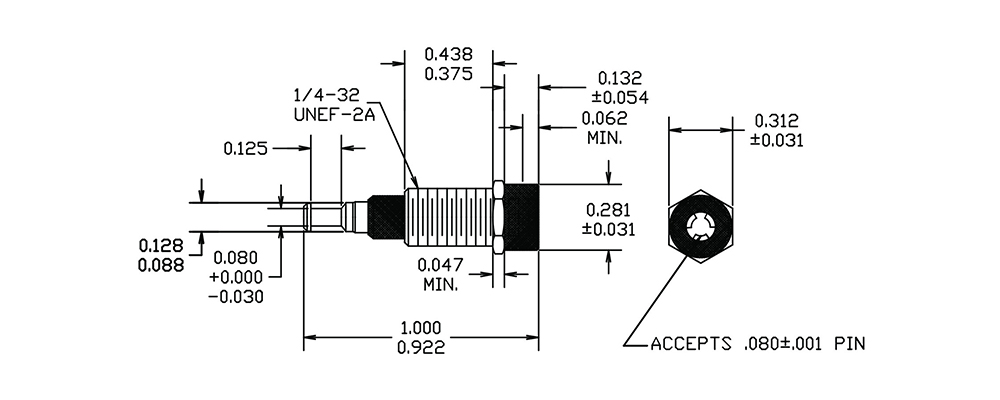

09-9074-1-0310
09-9074-1-0310
09-9074-1-0310
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Black -
09-9184-1-04414
09-9184-1-04414
09-9184-1-04414
0.975" 0.080 1/4-32 Nut 0.620 " 0.257 Up to 3/16 Jack/Eyelet Brass Bright Tin Beryllium Copper Bright Tin Nylon   Yellow -
09-9074-1-0311
09-9074-1-0311
09-9074-1-0311
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Brown -
09-9184-1-04415
09-9184-1-04415
09-9184-1-04415
0.975" 0.080 1/4-32 Nut 0.620 " 0.257 Up to 3/16 Jack/Eyelet Brass Bright Tin Beryllium Copper Bright Tin Nylon   Green -
09-9074-1-0312
09-9074-1-0312
09-9074-1-0312
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Red -
09-9184-1-04416
09-9184-1-04416
09-9184-1-04416
0.975" 0.080 1/4-32 Nut 0.620 " 0.257 Up to 3/16 Jack/Eyelet Brass Bright Tin Beryllium Copper Bright Tin Nylon   Blue -
09-9074-1-0313
09-9074-1-0313
09-9074-1-0313
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Orange -
09-9184-1-04417
09-9184-1-04417
09-9184-1-04417
0.975" 0.080 1/4-32 Nut 0.620 " 0.257 Up to 3/16 Jack/Eyelet Brass Bright Tin Beryllium Copper Bright Tin Nylon   Violet -
09-9074-1-0314
09-9074-1-0314
09-9074-1-0314
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Yellow -
09-9184-1-04418
09-9184-1-04418
09-9184-1-04418
0.975" 0.080 1/4-32 Nut 0.620 " 0.257 Up to 3/16 Jack/Eyelet Brass Bright Tin Beryllium Copper Bright Tin Nylon   Gray -
09-9074-1-0315
09-9074-1-0315
09-9074-1-0315
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Green -
09-9184-1-04419
09-9184-1-04419
09-9184-1-04419
0.975" 0.080 1/4-32 Nut 0.620 " 0.257 Up to 3/16 Jack/Eyelet Brass Bright Tin Beryllium Copper Bright Tin Nylon   White -
09-9074-1-0316
09-9074-1-0316
09-9074-1-0316
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Blue -

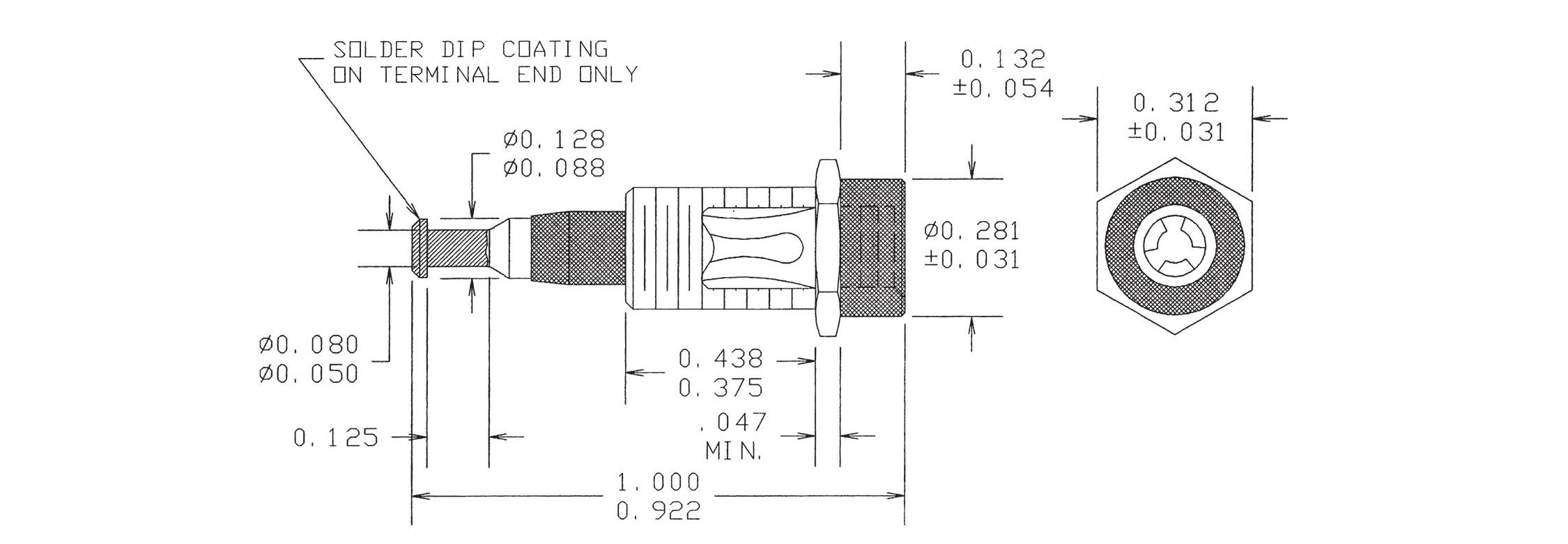

09-9228-1-0310
09-9228-1-0310
09-9228-1-0310
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Gold WITH Solder COATED TIP Beryllium Copper Gold Nylon   Black -
09-9074-1-0317
09-9074-1-0317
09-9074-1-0317
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Violet -
09-9228-1-0311
09-9228-1-0311
09-9228-1-0311
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Gold WITH Solder COATED TIP Beryllium Copper Gold Nylon   Brown -
09-9074-1-0318
09-9074-1-0318
09-9074-1-0318
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Gray -
09-9228-1-0312
09-9228-1-0312
09-9228-1-0312
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Gold WITH Solder COATED TIP Beryllium Copper Gold Nylon   Red -
09-9074-1-0319
09-9074-1-0319
09-9074-1-0319
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   White -
