Insulated
Banana Jacks

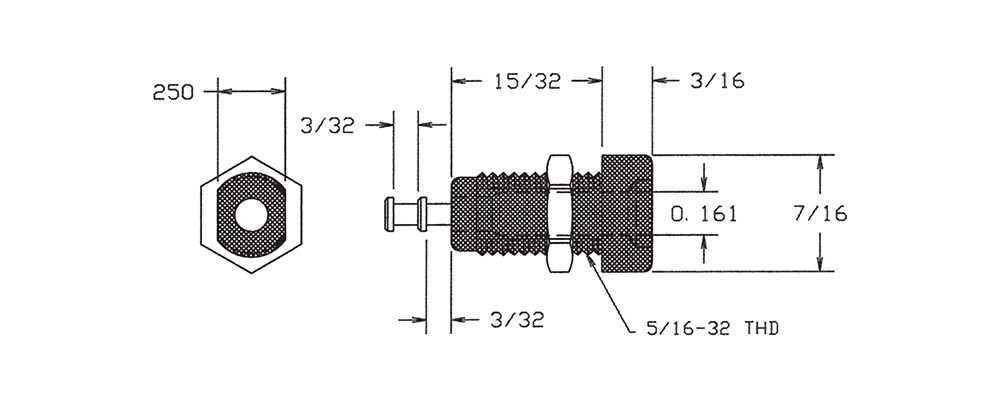

09-9136-1-0317
09-9136-1-0317
09-9136-1-0317
0.915" Standard 0.421 " 5/16-32 Nut Up to 5/16 0.312 x 0.250 Brass Gold - Nylon Violet
25-9236-1-0310
25-9236-1-0310
25-9236-1-0310
1.588" Standard 0.760 " 1/4-32 Nut Up to 3/8 0.375 Brass Gold Gold Polycarbonate Black
25-9236-1-04412
25-9236-1-04412
25-9236-1-04412
1.588" Standard 0.760 " 1/4-32 Nut Up to 3/8 0.375 Brass Bright Tin Bright Tin Polycarbonate Red
25-9235-1-0317
25-9235-1-0317
25-9235-1-0317
1.670" Standard 0.760 " 1/4-32 Nut Up to 3/8 0.375 x 0.350D HOLE Brass Gold Gold Polycarbonate Violet
25-9235-1-0313
25-9235-1-0313
25-9235-1-0313
1.670" Standard 0.760 " 1/4-32 Nut Up to 3/8 0.375 x 0.350D HOLE Brass Gold Gold Polycarbonate Orange
25-9235-1-0314
25-9235-1-0314
25-9235-1-0314
1.670" Standard 0.760 " 1/4-32 Nut Up to 3/8 0.375 x 0.350D HOLE Brass Gold Gold Polycarbonate Yellow
25-9235-1-0311
25-9235-1-0311
25-9235-1-0311
1.670" Standard 0.760 " 1/4-32 Nut Up to 3/8 0.375 x 0.350D HOLE Brass Gold Gold Polycarbonate Brown

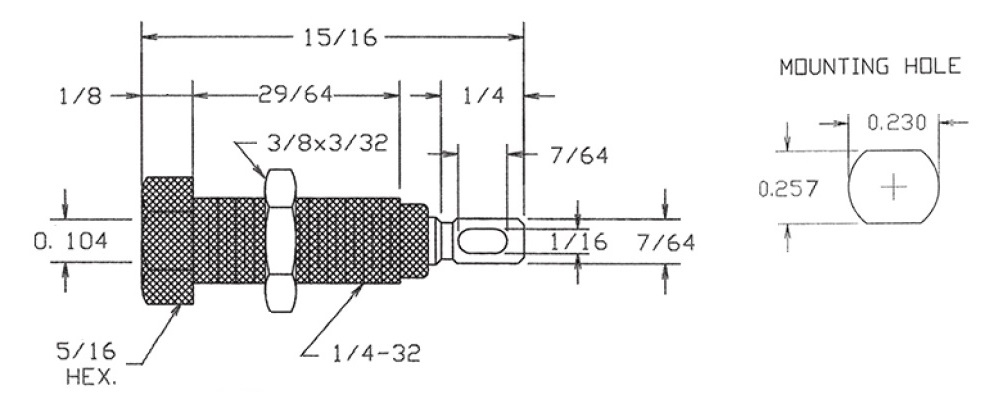

09-9140-1-0315
09-9140-1-0315
09-9140-1-0315
0.938" Miniature 0.320 " 1/4-32 Nut Up to 1/4 0.257 x 0.230 Brass Gold - Nylon Green
25-9234-1-0310
25-9234-1-0310
25-9234-1-0310
1.220" Std + 0.80 0.760 " 1/4-32 Nut Up to 3/8 0.375 Brass Gold - Polycarbonate Black
25-9234-1-04410
25-9234-1-04410
25-9234-1-04410
1.220" Std + 0.80 0.760 " 1/4-32 Nut Up to 3/8 0.375 Brass Bright Tin - Polycarbonate Black
25-9234-1-04412
25-9234-1-04412
25-9234-1-04412
1.220" Std + 0.80 0.760 " 1/4-32 Nut Up to 3/8 0.375 Brass Bright Tin - Polycarbonate Red
09-9128-1-0212
09-9128-1-0212
09-9128-1-0212
0.719" Standard 0.719 " 1/4-32 Nut Up to 3/8 0.312 Brass Nickel - Nylon Red
09-9126-1-04413
09-9126-1-04413
09-9126-1-04413
0.922" Standard 0.596 " 5/16-32 Nut Up to 5/16 0.312 x 0.250 Red Brass (85% Cu) Bright Tin - Nylon Orange
09-9140-1-0312
09-9140-1-0312
09-9140-1-0312
0.938" Miniature 0.320 " 1/4-32 Nut Up to 1/4 0.257 x 0.230 Brass Gold - Nylon Red
09-9141-1-04417
09-9141-1-04417
09-9141-1-04417
1.016" Miniature 0.320 " 1/4-32 Nut Up to 1/4 0.257 Brass Bright Tin - Nylon Violet
09-9135-1-0316
09-9135-1-0316
09-9135-1-0316
0.938" Standard 0.421 " 5/16-32 Nut Up to 5/16 0.312 Brass Gold - Nylon Blue
25-9235-1-0319
25-9235-1-0319
25-9235-1-0319
1.670" Standard 0.760 " 1/4-32 Nut Up to 3/8 0.375 x 0.350D HOLE Brass Gold Gold Polycarbonate White
25-9235-1-04410
25-9235-1-04410
25-9235-1-04410
1.670" Standard 0.760 " 1/4-32 Nut Up to 3/8 0.375 x 0.350D HOLE Brass Bright Tin Bright Tin Polycarbonate Black
25-9235-1-04415
25-9235-1-04415
25-9235-1-04415
1.670" Standard 0.760 " 1/4-32 Nut Up to 3/8 0.375 x 0.350D HOLE Brass Bright Tin Bright Tin Polycarbonate Green
25-9236-1-04410
25-9236-1-04410
25-9236-1-04410
1.588" Standard 0.760 " 1/4-32 Nut Up to 3/8 0.375 Brass Bright Tin Bright Tin Polycarbonate Black
